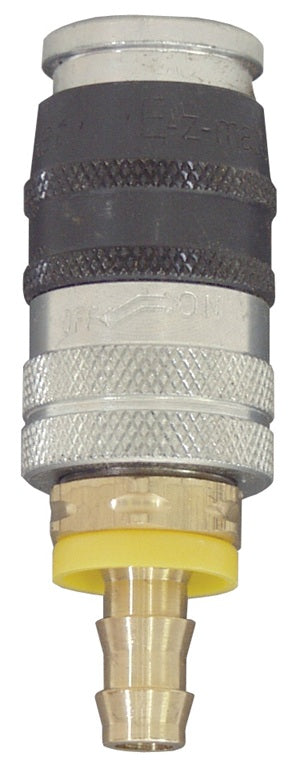

DC1045LSE by Parker / Dixon Valve | Pneumatic E-Z-Mate Industrial Coupler/Socket | Push-Lock Hose Barb | 1/2" Hose ID x 1/2" Body Size | Steel

DC1045LSE by Parker / Dixon Valve | Pneumatic E-Z-Mate Industrial Coupler/Socket | Push-Lock Hose Barb | 1/2" Hose ID x 1/2" Body Size | Steel

Sale price$94.20
Factory Order - Lead Time Applies
Buy more, save moreDiscounts applied in cart/checkout.
How It Works:
  • Simply follow the on-off arrow stamped on the yellow chromate valve sleeve. Valve sleeve acts as an integral shut-off valve that allows connection and disconnection at zero pressure. When the sleeve is moved to shut off air flow, it automatically vents downstream allowing for disconnection at zero pressure and eliminating the risk of hose whip.
Construction:
  • Steel with brass hose barb end.
Specifications:
  • Meets ISO 4414 requirements for a controlled pressure release system.
  • Pressure rating: 300 PSI.
  • Temperature range (standard seals): -40 °F to 250 °F (-40 °C to 121 °C).
Safety Notes:
  • Not recommended for vacuum service.
  • Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application.
  • Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death.
Steel
Part Number		 Body Size Hose ID Flow Rating
at 100 PSI
DC2042LSE 1/4" 1/4" 37 CFM
DC2044LSE 1/4" 3/8" 37 CFM
DC2644LSE 3/8" 3/8" 70 CFM
DC1045LSE 1/2" 1/2" 150 CFM

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 1/2in Female EZ-Mate QD Interchange
  • 1/2in Push-On Hose Barb
Material(s):
  • Steel

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
