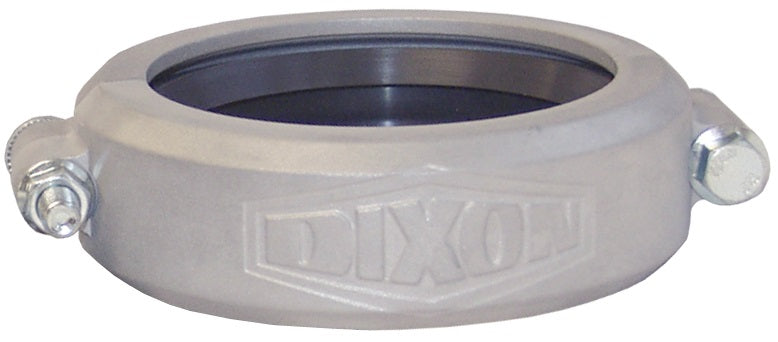

DBV-BN200 by Dixon Valve | Grooved Bolted Clamp | 2" Size | Nitrile Rubber Gasket | Aluminum

DBV-BN200 by Dixon Valve | Grooved Bolted Clamp | 2" Size | Nitrile Rubber Gasket | Aluminum

Sale price$39.06
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Designed to join two pieces of pipe together.
  • Precision forged to provide an exact fit and great appearance.
  • Manufactured to fit new and existing grooved pipe connections.
  • Use of lock nuts prevents clamps from loosening in high vibration applications.
  • Leak-tight connection.
  • Lightweight yet rugged. Unlike steel groove clamps that secure pipe ends with high clamp force against the tubing walls, the Dixon bolted clamp takes the full bolt force and locks in the groove of the tube preventing distortion of the tube diameter.
Construction:
  • Aluminum body
  • Steel bolts/nuts
How It Works:
  • The two pipes are butted to one another each pipe has a groove that runs the circumference of the pipe exterior. The grooved clamp has ridges that lock into the two pipe grooves and a gasket is compressed to the pipes to create a leak-tight seal.
Safety Notes:
  • Supplied clamp gasket must be installed prior to use.
  • Torque the bolts until metal to metal contact occurs at the bolt pads (about 20 ft-lbs). Bolts must be tightened evenly to prevent gasket pinching and clamp breaking. DO NOT tighten one side then the other. Over-torquing will not improve sealing and may result in failure of the clamps. DO NOT torque bolts over 30 ft-lbs.
  • Intended for tank truck applications only.
Specifications:
  • Temperature ratings for FKM-B is 20°F to 300°F (-7°C to 149°C)
  • Temperature ratings for Baylast™ is -20°F to 180°F (-29°C to 82°C)
  • 2" pressure rating: 400 PSI
  • 3" pressure rating: 170 PSI
  • 4" pressure rating: 120 PSI
Approvals:
  • FKM-B rated for 100% biodiesel and Ethanol.
  • Nitrile rubber rated for petroleum service, Ethanol to E100, and biodiesel to B20.
  • Baylast™ rated for petroleum service, Ethanol to E100, and biodiesel to B100.
Aluminum
with FKM-B Gasket
Part Number		 Aluminum
with Nitrile Rubber Gasket
Part Number		 Aluminum
with Baylast Gasket
Part Number		 Aluminum
with White Nitrile Rubber Gasket
Part Number		 Size
DBV-VB200 DBV-BN200 DBV-BL200 - 2"
DBV-VB300 DBV-BN300 DBV-BL300 - 3"
DBV-VB400 DBV-BN400 DBV-BL400 DBV-WB400 4"

Additional Product Data:

Material(s):
  • Aluminum
Seal Material(s):
  • Buna-N/Nitrile Rubber
