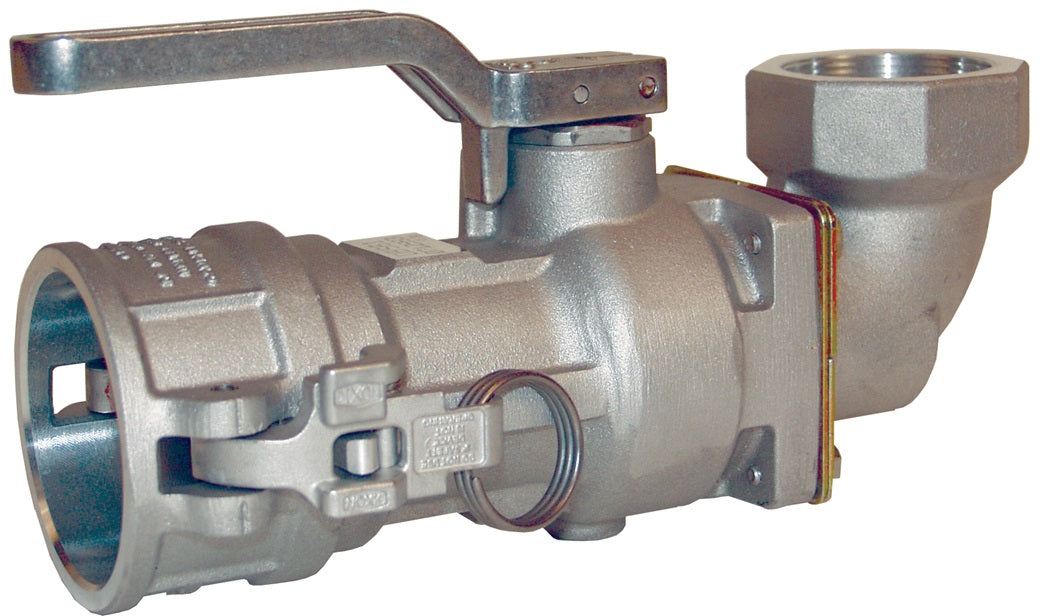

DBS61-200 Bayloc® by Dixon Valve | Dry Disconnect | 90° Elbow | 2" Swivel Female NPT x 2-1/2" Coupler | Nitrile Rubber Seal | Aluminum

DBS61-200 Bayloc® by Dixon Valve | Dry Disconnect | 90° Elbow | 2" Swivel Female NPT x 2-1/2" Coupler | Nitrile Rubber Seal | Aluminum

Sale price$773.29

Dixon Valve
Bayloc® Dry Disconnect | Coupler x Swivel Female NPT | 90° Elbow

Dry disconnects help prevent spillage from normal or accidental disconnects. A spring loaded sealing device is designed to "snap" closed should the valve become disconnected with the poppet open, significantly limiting liquid loss.
Buy More, Save More!
Quantity Price Each
5–14 $726.89
15–29 $657.30
30+ $579.97
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Bayloc
Shape:

Straight

Cam & Groove Type:

Type D
Compatibility & Interchange Data:
  • Compatible with most other brands of cam and groove style dry disconnects.
  • Fully interchangeable with Kamvalok (OPW trademark) style fittings.
Use:
  • Use with DBA style adapters.
  • Use with standard cam and groove dust plug sized one size larger than the dry disconnect size.
Features:
  • Coupler has automatic closing poppet assembly.
  • Heavy duty construction provides long service life.
  • Stainless steel handle allows product exposure to corrosive chemicals or washdown service.
  • Strong handle attachment prevents bending of crank assembly.
  • Dixon EZ Boss-Lock cam arms provide added security from accidental opening due to vibration or snagging. Very easy to use, just close the arms and they lock, to open simply lift the lever.
Construction:
  • Stainless steel internals.
  • Heavy duty stainless steel handle, crank and link.
Safety Notes:
  • Must be used with a DBA (Dry Break Cam & Groove) Style adapter for coupler to operate. Adapter sold separately.
Specifications:
  • Canadian registration number CRN # OH14044 all provinces.
  • Maximum operating pressure at 70°F (21°C):
    • 1-1/2" - 210 PSI
    • 2" - 150 PSI
    • 3" - 120 PSI
Aluminum
Part Number		 Female NPT Coupler Size Seal Material Maximum
PSI at
70°F (21°C)
DBS61-200 2" 2-1/2" Nitrile Rubber 150 PSI
DBS62-200 2" 2-1/2" FKM 150 PSI
DBS63-200 2" 2-1/2" PTFE Encapsulated Silicone & FFPM 150 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
