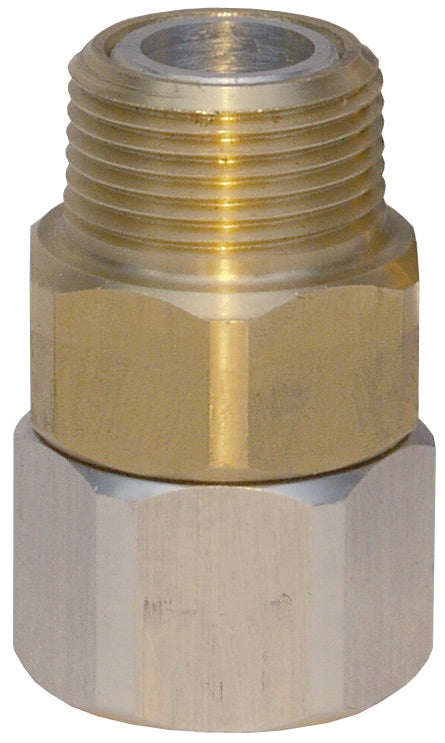

DAWS1414 by Dixon Valve | Single Plane Hose Swivel | for Diesel & Gasoline Nozzles | 1-1/4" Male NPT x 1-1/4" Female NPT Size | F-7036 Viton™ Seal | Aluminum

DAWS1414 by Dixon Valve | Single Plane Hose Swivel | for Diesel & Gasoline Nozzles | 1-1/4" Male NPT x 1-1/4" Female NPT Size | F-7036 Viton™ Seal | Aluminum

Sale price$201.13

Dixon Valve
Tank Truck | Single Plane Hose Swivel for Diesel & Gasoline Nozzles

Manufactured to connect to NPT threaded hose and nozzle connections.
Buy More, Save More!
Quantity Price Each
5–19 $189.06
20–59 $170.96
60+ $150.85
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Bayco
Shape:

Straight

Ends Configuration:
  • 1-1/4in Female NPT
  • 1-1/4in Male NPT
Construction:
  • Body: Aluminum.
  • Brass hex nut prevents galling in the nozzle.
  • Seals: F-7036 Viton®.
  • Retainer: nylon cord.
Specifications:
  • Maximum Operating Pressure: 150 PSI
Safety Note:
  • All fuel contains additives, which can vary by fuel brand and season. Please contact Dixon with a list of all additives and we will advise of any known compatibility issues.
Aluminum
Part		 Male NPT x Female NPT Size
DAWS34 3/4" x 3/4"
DAWS10 1" x 1"
DAWS1414 1-1/4" x 1-1/4"
DAWS1514 1-1/2" x 1-1/4"
DAWS15 1-1/2" x 1-1/2"
DAWS22 2" x 2"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
