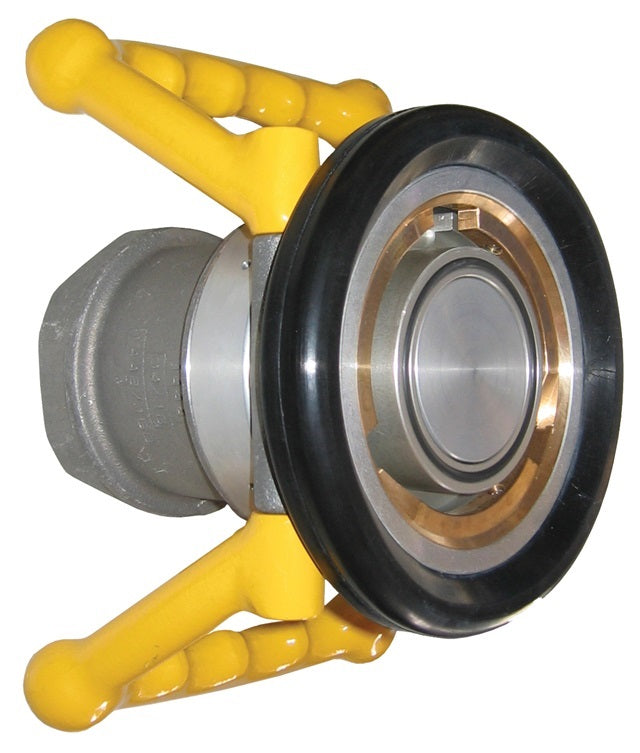

DAC300ALBSP by Dixon Valve | MannTek Dry Disconnect Aviation Coupler | Hose Unit | 3" Female BSP | ISO 45 Body Size | Aluminum
Dixon

DAC300ALBSP by Dixon Valve | MannTek Dry Disconnect Aviation Coupler | Hose Unit | 3" Female BSP | ISO 45 Body Size | Aluminum

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • Composite (Polyeten PE-HD 300) plug provides good protection in harsh environments.
  • Accepts international standard 2-1/2" point bayonet, hose end refueling nozzles according to: ISO45 / MS24484 / STANAG 3105 / British Aerospace Spec. 2C14, they are not configured for under-wing refueling.
  • Gunmetal coupling ring minimizes the risk of seizure.
  • Riveted piston pin minimizes risk of failure under extreme pressure conditions.
  • Protective ring is a specially formulated weather resistant and electrically conductive rubber compound.
Materials:
  • Body: high-strength aluminum
  • Coupling ring: gunmetal (produced to U.S. government bronze specification G).
  • Bayonet flange and inner parts: stainless steel, aluminum.
  • All wetted parts are aluminum and stainless steel.
  • Stainless steel ball bearings.
  • Stainless steel shaft journal embedded in PTFE eliminates seizure.
  • PTFE bearings between the driving plate and piston guide eliminate the risk of seizure.
Specifications:
  • Working pressure: 150 PSI at ambient temperature 70°F (21°C).
  • Accepts international standard 2-1/2" point bayonet, hose end refueling nozzles according to: ISO45 / MS24484 / STANAG 3105 / British Aerospace Spec. 2C14.
Safety Note:
  • Not configured for under-wing refueling.
Part Number Female BSP Body Size
DAC250ALBSP 2-1/2" ISO 45
DAC300ALBSP 3" ISO 45
