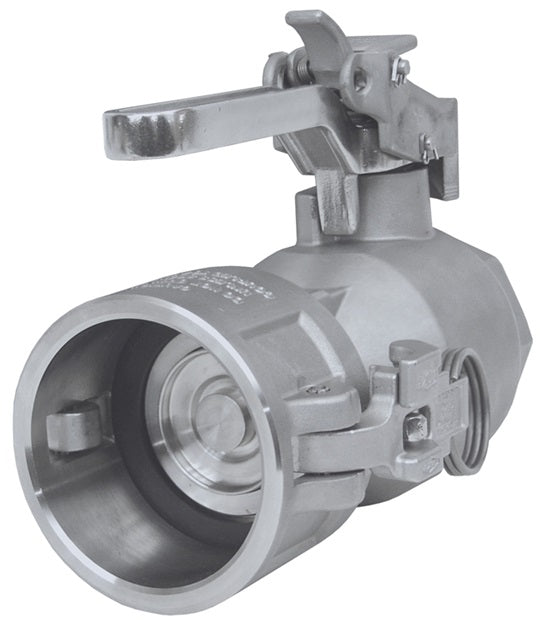

D2C73-150 Bayloc® by Dixon Valve | Dry Disconnect | D2C-Series | Cam & Groove Actuator Style Coupler | 1-1/2" Female NPT x 2" Coupler | PTFE Encapsulated Silicone Seal | Stainless Steel

D2C73-150 Bayloc® by Dixon Valve | Dry Disconnect | D2C-Series | Cam & Groove Actuator Style Coupler | 1-1/2" Female NPT x 2" Coupler | PTFE Encapsulated Silicone Seal | Stainless Steel

Sale price$968.83
Buy more, save moreDiscounts applied in cart/checkout.
Compatibility & Interchange Data:
  • Compatible with most other brands of cam and groove style dry disconnects.
Construction:
  • 316 stainless steel body.
  • 304 stainless steel internal components.
  • Stainless steel locking lever standard.
  • EZ Boss-Lock cam arms.
Features:
  • The D2C style coupler does not have an internal seal cylinder, therefore the couplings do not automatically close.
  • Helps eliminate the possibility of costly spills.
  • EZ Boss-Lock automatic locking cam arms provide added security from accidental opening due to cam arms getting snagged or vibration. Very easy to use, just close the arms and they lock, to open simply lift the lever (possibly even with gloves on).
Use:
  • Couplers work with the DBA (Bayloc® Dry Disconnect) poppeted adapters in applications where automatic closure for the coupler is not desired.
  • Use with standard cam and groove dust plugs sized one size larger than the dry disconnect size.
Stainless Steel
Part Number		 Female
NPT		 Coupler
Size		 Seal Material
D2C71-150 1-1/2" 2" Nitrile Rubber
D2C71-200 2" 2-1/2" Nitrile Rubber
D2C72-150 1-1/2" 2" FKM
D2C72-200 2" 2-1/2" FKM
D2C73-150 1-1/2" 2" PTFE Encapsulated Silicone
D2C73-200 2" 2-1/2" PTFE Encapsulated Silicone
D2C74-150 1-1/2" 2" EPDM
D2C74-200 2" 2-1/2" EPDM
D2C77-150 1-1/2" 2" PTFE Encapsulated FKM
D2C77-200 2" 2-1/2" PTFE Encapsulated FKM
D2C79-150 1-1/2" 2" FKM-B

Additional Product Data:

Brand:
  • Bayloc
Series:
  • D2C Series
Shape:

Straight

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
