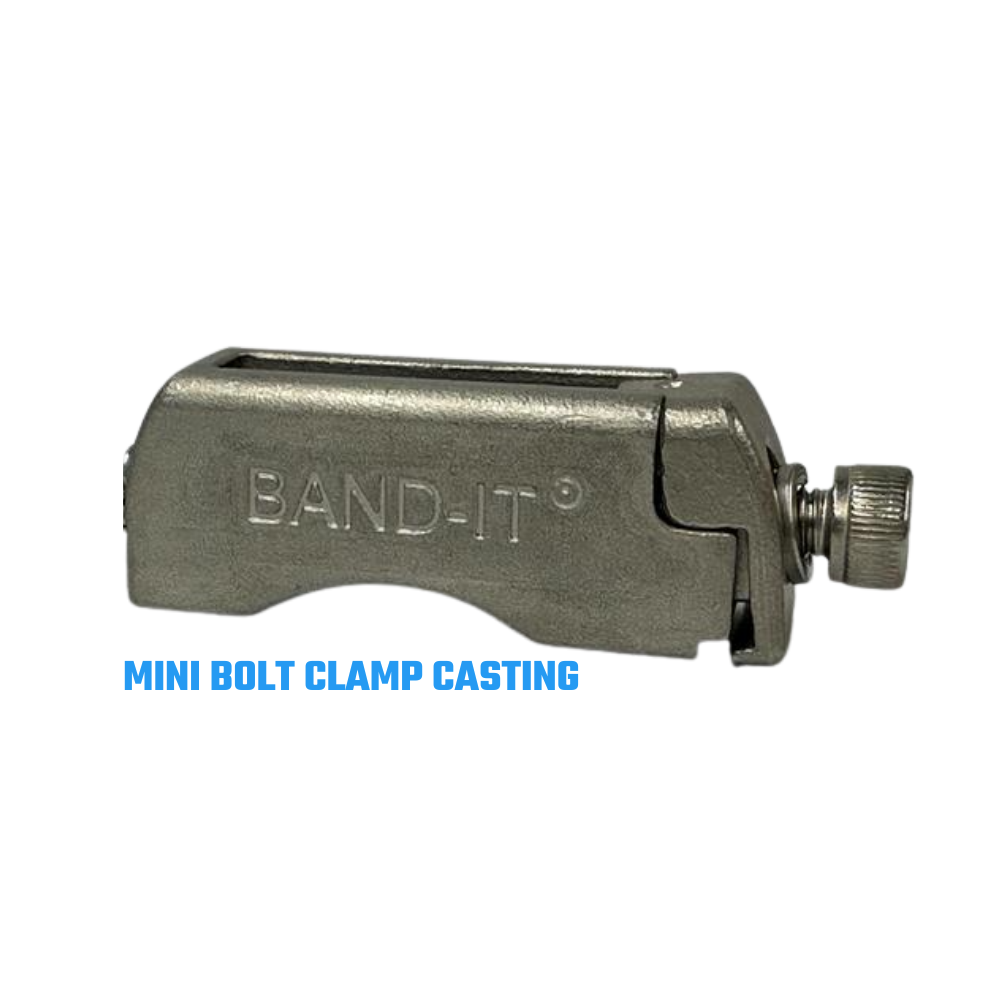

D10309 by Band-It | Mini Bolt Clamp (Casting) | 1/2" Clamp Width | 4.3" Clamp ID | 304 Stainless Steel
Minimum Order Quantity: 5 Units
Buy more, save moreDiscounts applied in cart/checkout.
BAND-IT® Mini Bolt Clamp
What are the main product features?
- Vibration tested clamp design.
- Corrosion resistant construction available in 304 and 316 stainless steel.
- Easy assembly and installation using a hex key.
- Cost-efficient design allows parts to be reused and relocated after initial installation.
Which Casting sizes are available?
| Part Number | Material | Width | Width (mm) | Loop Length (in) | Loop Length (mm) | Max Bolt Torque (N·m) | Max DIA Single Wrap | Loop Tensile Strength (lbs) |
|---|---|---|---|---|---|---|---|---|
| D10309 | 304 Stainless Steel | 1/2" | 12.7 | 15.7" | 400 | 10 | 4.3" | 1416 |
| D10319 | 304 Stainless Steel | 1/2" | 12.7 | 33.5" | 850 | 10 | 9.8" | 1416 |
| D10329 | 304 Stainless Steel | 1/2" | 12.7 | 51.2" | 1300 | 10 | 15.4" | 1416 |
| D10409 | 316 Stainless Steel | 1/2" | 12.7 | 15.7" | 400 | 10 | 4.3" | 1416 |
| D10419 | 316 Stainless Steel | 1/2" | 12.7 | 33.5" | 850 | 10 | 9.8" | 1416 |
| D10429 | 316 Stainless Steel | 1/2" | 12.7 | 51.2" | 1300 | 10 | 15.4" | 1416 |
| D40309 | 304 Stainless Steel | 5/8" | 15.8 | 15.7" | 400 | 10 | 4.3" | 1685 |
| D40319 | 304 Stainless Steel | 5/8" | 15.8 | 33.5" | 850 | 10 | 9.8" | 1685 |
| D40329 | 304 Stainless Steel | 5/8" | 15.8 | 51.2" | 1300 | 10 | 15.4" | 1685 |
| D40409 | 316 Stainless Steel | 5/8" | 15.8 | 15.7" | 400 | 10 | 4.3" | 1685 |
| D40419 | 316 Stainless Steel | 5/8" | 15.8 | 33.5" | 850 | 10 | 9.8" | 1685 |
| D40429 | 316 Stainless Steel | 5/8" | 15.8 | 51.2" | 1300 | 10 | 15.4" | 1685 |
Which Retainer sizes are available?
| Part Number | Material | Width | Width (mm) | Loop Length (in) | Loop Length (mm) | Max Bolt Torque (N·m) | Max DIA Single Wrap | Loop Tensile Strength (lbs) | Loop Tensile Strength (kg) |
|---|---|---|---|---|---|---|---|---|---|
| D20309 | 304 Stainless Steel | 1/2" | 12.7 | 15.7" | 400 | 10 | 4.3" | 1416 | 642 |
| D20319 | 304 Stainless Steel | 1/2" | 12.7 | 33.5" | 850 | 10 | 9.8" | 1416 | 642 |
| D20329 | 304 Stainless Steel | 1/2" | 12.7 | 51.2" | 1300 | 10 | 15.4" | 1416 | 642 |
| D20409 | 316 Stainless Steel | 1/2" | 12.7 | 15.7" | 400 | 10 | 4.3" | 1416 | 642 |
| D20419 | 316 Stainless Steel | 1/2" | 12.7 | 33.5" | 850 | 10 | 9.8" | 1416 | 642 |
| D20429 | 316 Stainless Steel | 1/2" | 12.7 | 51.2" | 1300 | 10 | 15.4" | 1416 | 642 |
| D20409-RS | 316 Stainless Steel | 1/2" | 12.7 | 15.7" | 400 | 3 | 4.3" | 494.47 | 224 |
Additional Product Data:
Series:
Material(s):
Clamp Width:
1/2in
Maximum Clamp I.D.:
4.3in
