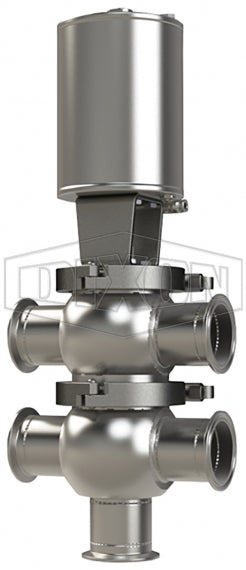

D08A40C1PE Dixon Valve 4" Single Seat Valve, Divert TT Body, Clamp, Spring Return Actuator (Air-To-Raise) - PTFE Plug Seal - EPDM Wetted Elastomer
Dixon

D08A40C1PE Dixon Valve 4" Single Seat Valve, Divert TT Body, Clamp, Spring Return Actuator (Air-To-Raise) - PTFE Plug Seal - EPDM Wetted Elastomer

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • Maximum Operating Temperature: 266°F (130°C)
  • Surface ID Finish: < 32Ra
  • Maximum Sterilization Temperature: (20 min/max): 275°F (135°C)
  • Elastomers are FDA and 3A compliant.
Construction:
  • All product contact steel components: 316L stainless steel
  • All non-product contact steel components: 304 stainless steel
Specifications:
  • 3A - authorization number 1655, 53-06 (compression-type valves).
Size Dimensions
A Stroke B C C2 D E F
4" 12.10" 1.04" 5.94" 4.50" - 6.08" 13.18" 6.00"
Part Number Size Actuator Type Stem Type Wetted Elastomers
D08A40C1EE 4" Spring Return Actuator (Air-To-Raise) Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D08A40C2EE 4" Spring Return Actuator (Air-To-Lower) Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D08A40C3EE 4" Double Acting Actuator (Air-To-Air) Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D08A40C1EV 4" Spring Return Actuator (Air-To-Raise) Elastomer O-Ring Stem Seal FKM Wetted Elastomer
D08A40C2EV 4" Spring Return Actuator (Air-To-Lower) Elastomer O-Ring Stem Seal FKM Wetted Elastomer
D08A40C3EV 4" Double Acting Actuator (Air-To-Air) Elastomer O-Ring Stem Seal FKM Wetted Elastomer
D08A40C1PE 4" Spring Return Actuator (Air-To-Raise) PTFE Plug Seal EPDM Wetted Elastomer
D08A40C2PE 4" Spring Return Actuator (Air-To-Lower) PTFE Plug Seal EPDM Wetted Elastomer
D08A40C3PE 4" Double Acting Actuator (Air-To-Air) PTFE Plug Seal EPDM Wetted Elastomer
D08A40C1PV 4" Spring Return Actuator (Air-To-Raise) PTFE Plug Seal FKM Wetted Elastomer
D08A40C2PV 4" Spring Return Actuator (Air-To-Lower) PTFE Plug Seal FKM Wetted Elastomer
D08A40C3PV 4" Double Acting Actuator (Air-To-Air) PTFE Plug Seal FKM Wetted Elastomer
