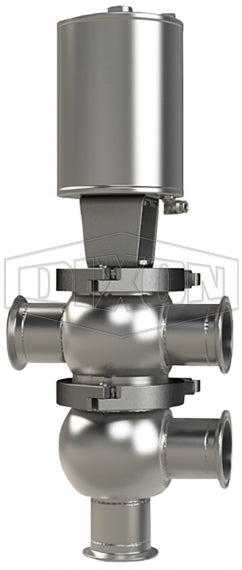

D06A15C2EE Dixon Valve 1-1/2" Single Seat Valve, Divert TL Body, Clamp, Spring Return Actuator (Air-To-Lower) - Elastomer O-Ring Stem Seal - EPDM Wetted Elastomer
Dixon

D06A15C2EE Dixon Valve 1-1/2" Single Seat Valve, Divert TL Body, Clamp, Spring Return Actuator (Air-To-Lower) - Elastomer O-Ring Stem Seal - EPDM Wetted Elastomer

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • Maximum Operating Temperature: 266°F (130°C)
  • Surface ID Finish: < 32Ra
  • Maximum Sterilization Temperature: (20 min/max): 275°F (135°C)
  • Elastomers are FDA and 3A compliant.
Construction:
  • All product contact steel components: 316L stainless steel
  • All non-product contact steel components: 304 stainless steel
Specifications:
  • 3A - authorization number 1655, 53-06 (compression-type valves).
Size Dimensions
A Stroke B C C2 D E F
1-1/2" 8.80" 0.77" 3.15" 2.75" - 4.11" 6.60" 6.00"
Part Number Size Actuator Type Stem Type Wetted Elastomers
D06A15C1EE 1-1/2" Spring Return Actuator (Air-To-Raise) Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D06A15C2EE 1-1/2" Spring Return Actuator (Air-To-Lower) Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D06A15C3EE 1-1/2" Double Acting Actuator (Air-To-Air) Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D06A15C1EV 1-1/2" Spring Return Actuator (Air-To-Raise) Elastomer O-Ring Stem Seal FKM Wetted Elastomer
D06A15C2EV 1-1/2" Spring Return Actuator (Air-To-Lower) Elastomer O-Ring Stem Seal FKM Wetted Elastomer
D06A15C3EV 1-1/2" Double Acting Actuator (Air-To-Air) Elastomer O-Ring Stem Seal FKM Wetted Elastomer
D06A15C1PE 1-1/2" Spring Return Actuator (Air-To-Raise) PTFE Plug Seal EPDM Wetted Elastomer
D06A15C2PE 1-1/2" Spring Return Actuator (Air-To-Lower) PTFE Plug Seal EPDM Wetted Elastomer
D06A15C3PE 1-1/2" Double Acting Actuator (Air-To-Air) PTFE Plug Seal EPDM Wetted Elastomer
D06A15C1PV 1-1/2" Spring Return Actuator (Air-To-Raise) PTFE Plug Seal FKM Wetted Elastomer
D06A15C2PV 1-1/2" Spring Return Actuator (Air-To-Lower) PTFE Plug Seal FKM Wetted Elastomer
D06A15C3PV 1-1/2" Double Acting Actuator (Air-To-Air) PTFE Plug Seal FKM Wetted Elastomer
D06A15C2EEA 1-1/2" Spring Return Actuator (Air-To-Lower)
10-30VDC External Prox, PNP		 Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D06A15C2EEQ 1-1/2" Spring Return Actuator (Air-To-Lower)
External Prox Bracket Only		 Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
