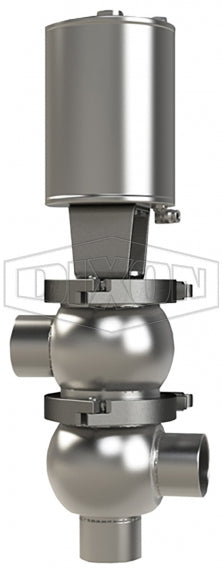

D05A30B2PE Dixon Valve 3" Single Seat Valve, Divert LL Body, Weld, Spring Return Actuator (Air-To-Lower) - PTFE Plug Seal - EPDM Wetted Elastomer
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Features: | |||
|---|---|---|---|
|
|||
| Construction: | |||
|
|||
| Specifications: | |||
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Size | Dimensions | |||||||
| A | Stroke | B | C | C2 | D | E | F | |
| 3" | 11.61" | 1.04" | 5.04" | 3.25" | - | 6.08" | 9.63" | 6.00" |
| Part Number | Size | Actuator Type | Stem Type | Wetted Elastomers | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D05A30B1EE | 3" | Spring Return Actuator (Air-To-Raise) | Elastomer O-Ring Stem Seal | EPDM Wetted Elastomer | ||||||||
| D05A30B2EE | 3" | Spring Return Actuator (Air-To-Lower) | Elastomer O-Ring Stem Seal | EPDM Wetted Elastomer | ||||||||
| D05A30B3EE | 3" | Double Acting Actuator (Air-To-Air) | Elastomer O-Ring Stem Seal | EPDM Wetted Elastomer | ||||||||
| D05A30B1EV | 3" | Spring Return Actuator (Air-To-Raise) | Elastomer O-Ring Stem Seal | FKM Wetted Elastomer | ||||||||
| D05A30B2EV | 3" | Spring Return Actuator (Air-To-Lower) | Elastomer O-Ring Stem Seal | FKM Wetted Elastomer | ||||||||
| D05A30B3EV | 3" | Double Acting Actuator (Air-To-Air) | Elastomer O-Ring Stem Seal | FKM Wetted Elastomer | ||||||||
| D05A30B1PE | 3" | Spring Return Actuator (Air-To-Raise) | PTFE Plug Seal | EPDM Wetted Elastomer | ||||||||
| D05A30B2PE | 3" | Spring Return Actuator (Air-To-Lower) | PTFE Plug Seal | EPDM Wetted Elastomer | ||||||||
| D05A30B3PE | 3" | Double Acting Actuator (Air-To-Air) | PTFE Plug Seal | EPDM Wetted Elastomer | ||||||||
| D05A30B1PV | 3" | Spring Return Actuator (Air-To-Raise) | PTFE Plug Seal | FKM Wetted Elastomer | ||||||||
| D05A30B2PV | 3" | Spring Return Actuator (Air-To-Lower) | PTFE Plug Seal | FKM Wetted Elastomer | ||||||||
| D05A30B3PV | 3" | Double Acting Actuator (Air-To-Air) | PTFE Plug Seal | FKM Wetted Elastomer | ||||||||
