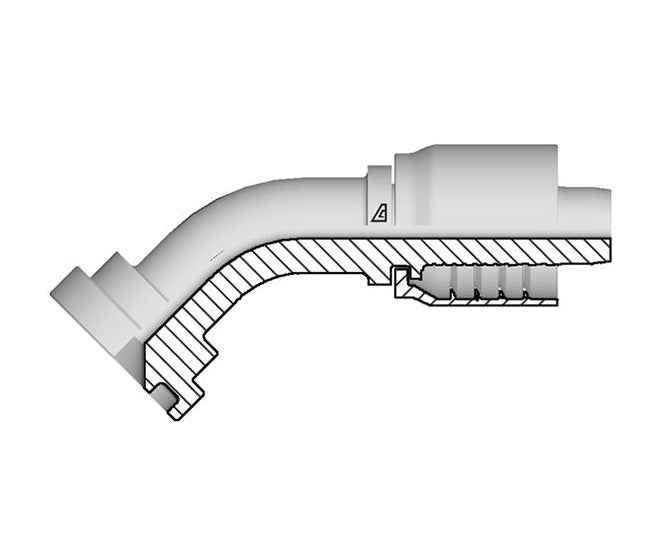

D-2424-C624 Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 45° Elbow | -24 Hose ID x -24 Code 62 O-Ring Flange | Steel

D-2424-C624 Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 45° Elbow | -24 Hose ID x -24 Code 62 O-Ring Flange | Steel

Sale price$145.54

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 45° Elbow | Hose Barb x Code 62 O-Ring Flange
Buy More, Save More!
Quantity Price Each
5–19 $136.81
20–59 $123.71
60+ $109.16
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • D Series
Shape:

45 Degree
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • 6000 PSI
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size Q Flange C
Cut-Off Factor		 D
Drop		 Max Working
Pressure		 Weight
Dash
Size		 (in.) (mm) (in.) (mm) (mm) (mm) PSI lbs/each
D-2020-C624 20 1-1/4" 31.8mm 1-1/4" 54.0mm 108.6mm 40mm 6000 PSI 2.01 lbs
D-2424-C624 24 1-1/2" 38.1mm 1-1/2" 63.5mm 122.9mm 45mm 6000 PSI 2.76 lbs
D-2432-C624 24 1-1/2" 38.1mm 2" 63.5mm 134.2mm 46mm 6000 PSI 3.34 lbs
D-3232-C624 32 2" 50.8mm 2" 79.4mm 156.6mm 60mm 6000 PSI 4.76 lbs
