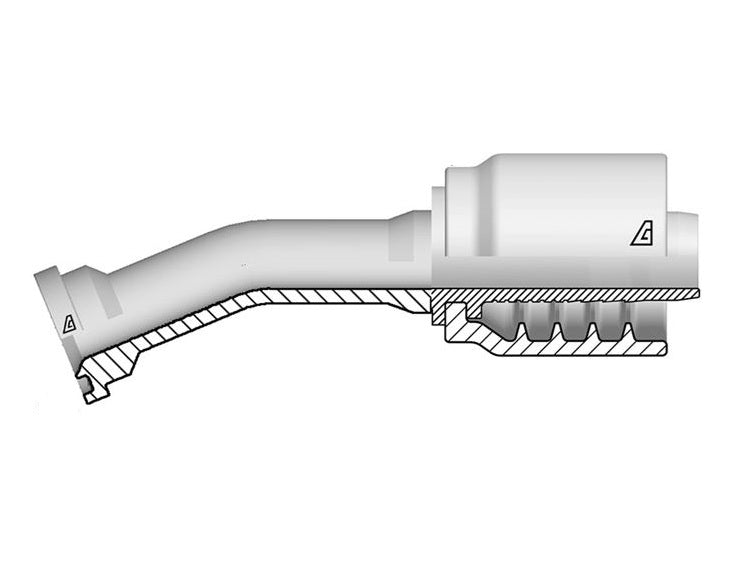

D-1616-C612 Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 22.5° Elbow | -16 Hose ID x -16 Code 61 O-Ring Flange | Steel

D-1616-C612 Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 22.5° Elbow | -16 Hose ID x -16 Code 61 O-Ring Flange | Steel

Sale price$71.53

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 22.5° Elbow | Hose Barb x Code 61 O-Ring Flange
Buy More, Save More!
Quantity Price Each
10–39 $67.24
40–79 $60.80
80+ $53.65
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • D Series
Shape:

22.5 Degree
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size Q Flange C
Cut-Off Factor		 D
Drop		 Max Working
Pressure		 Weight
Dash
Size		 (in.) (mm) (in.) (mm) (mm) (mm) PSI lbs/each
D-1616-C612 16 1" 25.4mm 1.75" 44.5mm 86.5mm 12.0mm 5000 PSI 1.45 lbs
D-2020-C612 20 1-1/4" 31.8mm 2.00" 50.8mm 114.0mm 13.0mm 4000 PSI 1.93 lbs
D-2024-C612 20 1-1/4" 31.8mm 2.38" 60.3mm 114.0mm 16.0mm 3000 PSI 2.18 lbs
D-2424-C612 24 1-1/2" 38.1mm 2.38" 60.3mm 133.5mm 16.5mm 3000 PSI 2.63 lbs
