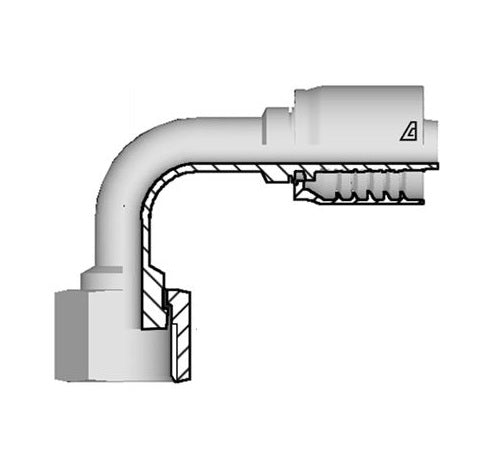

D-1216-FO9S Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Short Drop | ISO 12151-1 | -12 Hose ID x -16 Female O-Ring Face Seal | Steel

D-1216-FO9S Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Short Drop | ISO 12151-1 | -12 Hose ID x -16 Female O-Ring Face Seal | Steel

Sale price$61.33

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Short Drop | ISO 12151-1| Hose Barb x Female O-Ring Face Seal
Buy More, Save More!
Quantity Price Each
10–39 $57.65
40–79 $52.13
80+ $46.00
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • D Series
Shape:

90 Degree
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 D
Drop		 CH2 Weight
Dash
Size		 (in.) (mm) Dash
Size		 Size
(in) - TPI		 (mm) (mm) (mm) lbs/each
D-0606-FO9S 06 3/8" 9.5mm 06 11/16-16 41.8mm 25.0mm 22mm 0.24 lbs
D-0608-FO9S 06 3/8" 9.5mm 08 13/16-16 35.0mm 29.0mm 24mm 0.28 lbs
D-0808-FO9S 08 1/2" 12.7mm 08 13/16-16 39.8mm 29.0mm 24mm 0.37 lbs
D-0810-FO9S 08 1/2" 12.7mm 10 1-14 46.3mm 32.5mm 30mm 0.45 lbs
D-1212-FO9S 12 3/4" 19.0mm 12 1-3/16-12 60.6mm 51.0mm 36mm 0.90 lbs
D-1216-FO9S 12 3/4" 19.0mm 16 1-7/16-12 50.0mm 56.0mm 41mm 1.08 lbs
D-1616-FO9S 16 1" 25.4mm 16 1-7/16-12 80.0mm 58.0mm 41mm 1.46 lbs
D-2020-FO9S 20 1-1/4" 31.8mm 20 1-11/16-12 95.0mm 68.0mm 50mm 2.21 lbs
D-2424-FO9S 24 1-1/2" 38.1mm 24 2-12 103.0mm 69.0mm 60mm 3.03 lbs
