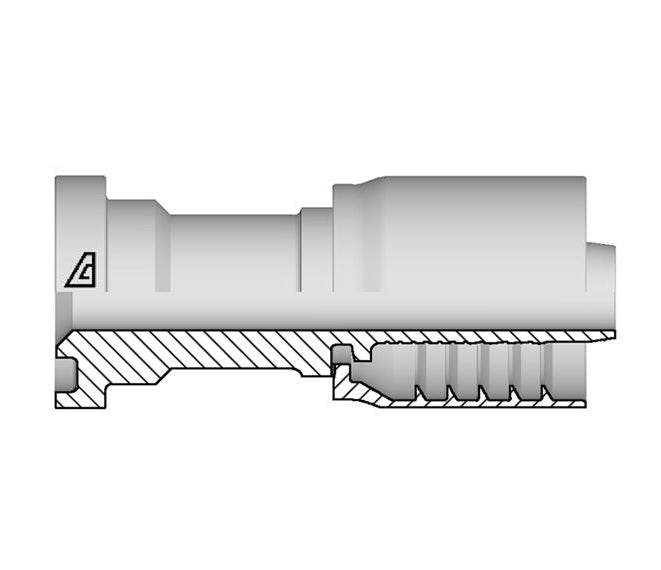

D-0812-C61S Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | -08 Hose ID x -12 Code 61 O-Ring Flange | Steel

D-0812-C61S Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | -08 Hose ID x -12 Code 61 O-Ring Flange | Steel

Sale price$35.66

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | Hose Barb x Code 61 O-Ring Flange
Buy More, Save More!
Quantity Price Each
10–39 $33.52
40–79 $30.31
80+ $26.75
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • D Series
Shape:

Straight
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size Q Flange C
Cut-Off Factor		 Max Working
Pressure		 Weight
Dash
Size		 (in.) (mm) (in.) (mm) (mm) PSI lbs/each
D-0808-C61S 08 1/2" 12.7mm 1.19" 30.2mm 41.0mm 5000 PSI 0.39 lbs
D-0812-C61S 08 1/2" 12.7mm 1.50" 38.1mm 42.0mm 5000 PSI 0.49 lbs
D-1212-C61S 12 3/4" 19.0mm 1.50" 38.1mm 42.5mm 5000 PSI 0.66 lbs
D-1216-C61S 12 3/4" 19.0mm 1.75" 44.5mm 50.5mm 5000 PSI 0.80 lbs
D-1616-C61S 16 1" 25.4mm 1.75" 44.5mm 51.4mm 5000 PSI 1.81 lbs
D-1620-C61S 16 1" 25.4mm 2.00" 50.8mm 53.9mm 4000 PSI 1.21 lbs
D-2020-C61S 20 1-1/4" 31.8mm 2.00" 50.8mm 55.5mm 4000 PSI 1.43 lbs
D-2024-C61S 20 1-1/4" 31.8mm 2.38" 60.3mm 58.5mm 3000 PSI 1.61 lbs
D-2424-C61S 24 1-1/2" 38.1mm 2.38" 60.3mm 58.5mm 3000 PSI 2.56 lbs
D-2432-C61S 24 1-1/2" 38.1mm 2.81" 71.4mm 70.0mm 3000 PSI 3.10 lbs
D-3232-C61S 32 2" 50.8mm 2.81" 71.4mm 70.0mm 3000 PSI 4.41 lbs
