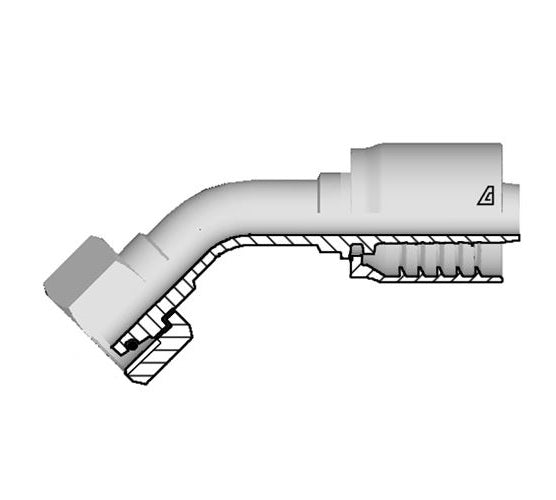

D-0618-FM4L Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Light | 45° Elbow | -06 Hose ID x M18 Female Metric Swivel O-Ring 24° Seat | Steel

D-0618-FM4L Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Light | 45° Elbow | -06 Hose ID x M18 Female Metric Swivel O-Ring 24° Seat | Steel

Sale price$18.70

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Light | 45° Elbow | Hose Barb x Female Metric Swivel O-Ring 24° Seat
Buy More, Save More!
Quantity Price Each
10–39 $17.58
40–79 $15.90
80+ $14.03
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • D Series
Shape:

45 Degree
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread Tube OD C
Cut-Off Factor		 D
Drop		 CH2 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(mm) x TP (mm)		 (mm) (mm) (mm) (mm) lbs/each
D-0618-FM4L 06 3/8" 9.5mm 18 M18x1.5 12mm 46.8mm 19.5mm 22mm 0.26 lbs
D-0822-FM4L 08 1/2" 12.7mm 22 M22x1.5 15mm 55.0mm 21.0mm 27mm 0.38 lbs
D-1026-FM4L 10 5/8" 15.9mm 26 M26x1.5 18mm 65.3mm 24.0mm 32mm 0.54 lbs
D-1230-FM4L 12 3/4" 19.0mm 30 M30x2 22mm 69.4mm 32.0mm 36mm 0.78lbs
D-1636-FM4L 16 1" 25.4mm 36 M36x2 28mm 91.4mm 32.0mm 41mm 1.17 lbs
D-2045-FM4L 20 1-1/4" 31.4mm 45 M45x2 35mm 141.5mm 45.0mm 50mm 1.82 lbs
D-2452-FM4L 24 1-1/2" 38.1mm 52 M52x2 42mm 112.0mm 38.0mm 60mm 2.77 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
