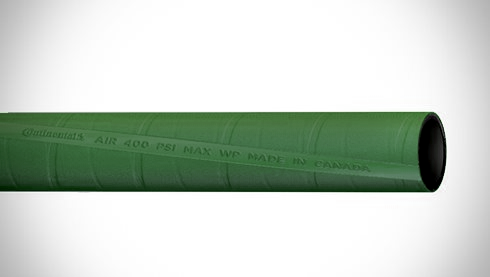

20018823 Plicord® by ContiTech | Air 400 Heavy Duty Air / Multipurpose Hose | Continental | 1.00" (1") ID | 400 PSI | Green | 100ft
Minimum Order Quantity: 4 Units
Continental ContiTech Plicord® Air 400 Heavy Duty Air & Multipurpose Hose
A versatile, heavy-duty air hose for use in rough industrial applications or for severe service in mines, quarries and construction jobs.
Minimum Order Quantity: 4 Pieces
Package Quantity: 100 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,189.37 |
| 8–14 | $1,138.76 |
| 15+ | $1,012.23 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
400
Tubing Construction:
Cover Construction:
| Application: | Rough industrial applications, severe service in mines, quarries and construction jobs. | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Black SBR synthetic rubber, ARPM Class C (Limited Oil Resistance) (non-conductive) |
| Reinforcement: | Spiral-plied synthetic fabric | Cover: | Green SBR synthetic rubber (wrapped impression), ARPM Class C (Limited Oil Resistance) |
| Temperature Range: | -25°F to 180°F (-32°C to 82°C) | Fittings: | N/A |
| Branding: | Continental ContiTech Plicord® Air 400 psi WP | ||
| Green Part Number |
Inside Diameter |
Nominal Outside Diameter |
Max. Working Pressure |
Length | Weight | Green Order Code |
||||
|---|---|---|---|---|---|---|---|---|---|---|
| in. | mm | in. | mm | PSI | MPa | lb./ft. | kg/m | |||
| 20018818 | 1/2" | 12.7mm | 0.88" | 22.4mm | 400 PSI | 2.76 MPa | 100ft | 0.23 lbs./ft. | 0.34 kg/m | 54900601601000 |
| 20018820 | 3/4" | 19.1mm | 1.23" | 31.2mm | 400 PSI | 2.76 MPa | 100ft | 0.45 lbs./ft. | 0.67 kg/m | 54900602401000 |
| 20018823 | 1" | 25.4mm | 1.50" | 38.1mm | 400 PSI | 2.76 MPa | 100ft | 0.58 lbs./ft. | 0.86 kg/m | 54900603201000 |
| 20018828 | 1-1/2" | 38.1mm | 2.04" | 51.8mm | 400 PSI | 2.76 MPa | 100ft | 0.86 lbs./ft. | 1.28 kg/m | 54900604801000 |
| 20018830 | 2" | 50.8mm | 2.55" | 64.7mm | 400 PSI | 2.76 MPa | 100ft | 1.11 lbs./ft. | 1.65 kg/m | 54900606401000 |
| 20018832 | 3" | 76.2mm | 3.70" | 94.0mm | 400 PSI | 2.76 MPa | 100ft | 2.14 lbs./ft. | 3.18 kg/m | 54900610701000 |
Hose design ratio (burst pressure) 4:1.
