20026012 Insta-Grip™ by ContiTech | 250 Push-On Air / Multipurpose Hose | Continental | 0.375" (3/8") ID | 250 PSI | Black | 500ft

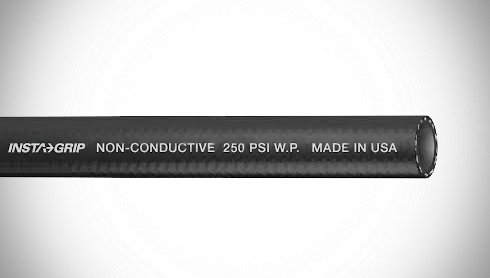

Continental ContiTech Insta-Grip™ 250 Push-on Air & Multipurpose Hose
For industrial service with push-on fittings at working pressures of 250 psi. Non-conductive, minimum electrical resistance greater than 1 megohm per inch of hose length at 1000 volts DC.
Package Quantity: 500 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,373.28 |
| 8–14 | $1,314.85 |
| 15+ | $1,168.75 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
250
Tubing Construction:
Cover Construction:
SPECIFICATIONS
| Application: | Industrial service. | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Chemivic oil and heat-resistant synthetic rubber, ARPM Class A (High Oil Resistance) |
| Reinforcement: | Spiral aramid yarn | Cover: | Chemivic, ARPM Class B (Medium Oil Resistance) |
| Temperature Range: | -20°F to 210°F (-29°C to 99°C) | Fittings: | N/A |
| Branding: | Insta-Grip™ Non-conductive 3/8" (9.5 mm) 250 psi WP Made in USA Continental ContiTech | ||
| Red Part Number |
Black Part Number |
Green Part Number |
Gray Part Number |
Inside Diameter |
Nominal Outside Diameter |
Max. Working Pressure |
Length | Weight | Red Order Code |
Black Order Code |
Green Order Code |
Gray Order Code |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in. | mm | in. | mm | PSI | MPa | lb./ft. | kg/m | |||||||||
| 20025988 | 20026001 | 20026043 | 20160048 | 1/4" | 6.4mm | 0.51" | 12.7mm | 250 PSI | 1.72 MPa | 500ft | 0.08 lbs./ft. | 0.12 kg/m | 56901306400200 | 56901406400200 | 56901506400200 | 56901606400200 |
| 20025994 | 20026012 | 20026046 | 20026055 | 3/8" | 9.5mm | 0.65" | 16.5mm | 250 PSI | 1.72 MPa | 500ft | 0.12 lbs./ft. | 0.18 kg/m | 56901309500200 | 56901409500200 | 56901509500200 | 56901609500200 |
| 20025999 | 20026030 | 20026050 | 20026057 | 1/2" | 12.7mm | 0.80" | 20.3mm | 250 PSI | 1.72 MPa | 500ft | 0.17 lbs./ft. | 0.25 kg/m | 56901312700200 | 56901412700200 | 56901512700200 | 56901612700200 |
| - | 20026035 | - | 20195088 | 5/8" | 15.9mm | 0.94" | 23.9mm | 250 PSI | 1.72 MPa | 500ft | 0.23 lbs./ft. | 0.34 kg/m | - | 56901415900200 | - | 56901615900200 |
| - | 20026037 | - | 20195089 | 3/4" | 19.1mm | 1.08" | 27.4mm | 250 PSI | 1.72 MPa | 50ft | 0.28 lbs./ft. | 0.42 kg/m | - | 56901419100200 | - | 56901619100200 |
Hose design ratio (burst pressure) 4:1.
