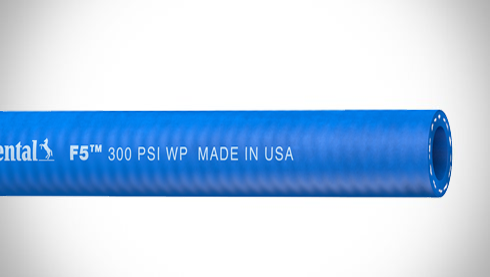

20463342 F5™ by ContiTech | Air Hose | Continental | 0.375" (3/8") ID | 300 PSI | Blue | 600ft
Continental ContiTech F5™ Air & Multipurpose Hose
A hybrid thermoplastic hose that provides durability and flexibility, is lightweight and has a low drag resistance. F5™ is non-marking, oil-resistant and performs well under cold temperatures to -40°F (-40°C). This 300 psi hose is designed for a variety of pneumatic applications in industries such as construction and manufacturing.
Package Quantity: 600 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $806.13 |
| 15–29 | $728.94 |
| 30+ | $643.19 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
300
Tubing Construction:
Cover Construction:
SPECIFICATIONS
| Application: | Pneumatic applications in the construction and manufacturing industries. | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Blue flexible TPE, ARPM Class B (Medium Oil Resistance) |
| Reinforcement: | Polyester yarn | Cover: | Matte blue flexible TPE, ARPM Class B (Medium Oil Resistance) |
| Temperature Range: | -40°F to 158°F (-40°C to 70°C) | Fittings: | N/A |
| Branding: | Continental ContiTech F5™ 300 psi Made in USA | ||
| Blue Part Number |
Inside Diameter |
Nominal Outside Diameter |
Max. Working Pressure |
Weight | Order Code | ||||
|---|---|---|---|---|---|---|---|---|---|
| in. | mm | in. | mm | PSI | MPa | lb./ft. | kg/m | ||
| 20463343 | 1/4" | 6.6mm | 0.50" | 11.5mm | 300 PSI | 2.07 MPa | 0.06 lbs./ft. | 0.09 kg/m | 54043800800002 |
| 20463342 | 3/8" | 9.8mm | 0.64" | 16.2mm | 300 PSI | 2.07 MPa | 0.10 lbs./ft. | 0.16 kg/m | 54043801200002 |
| 20463341 | 1/2" | 12.7mm | 0.81" | 20.0mm | 300 PSI | 2.07 MPa | 0.16 lbs./ft. | 0.24 kg/m | 54043801600002 |
| 20470081 | 3/4" | 18.9mm | 1.11" | 28.1mm | 300 PSI | 2.07 MPa | 0.26 lbs./ft. | 0.36 kg/m | 54043802400002 |
| 20476821 | 1" | 25.4mm | 1.37" | 34.8mm | 200 PSI | 1.38 MPa | 0.35 lbs./ft. | 0.52 kg/m | 54043803200002 |
| Coupled Lengths | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Blue Part Number |
Coupling | Inside Diameter |
Nominal Outside Diameter |
Max. Working Pressure |
Weight | Order Code | |||||
| in. | mm | in. | mm | PSI | MPa | lb./ft. | kg/m | ||||
| 20465480 | 3/8" Male NPT x 3/8" Male NPT | 3/8" | 9.8mm | 0.64" | 16.2mm | 300 PSI | 2.07 MPa | 0.10 lbs./ft. | 0.16 kg/m | 54043801210014 | |
| 20470808 | 1/4" Male NPT x 1/4" Male NPT | 54043801205014 | |||||||||
Hose design ratio (burst pressure) 4:1.
