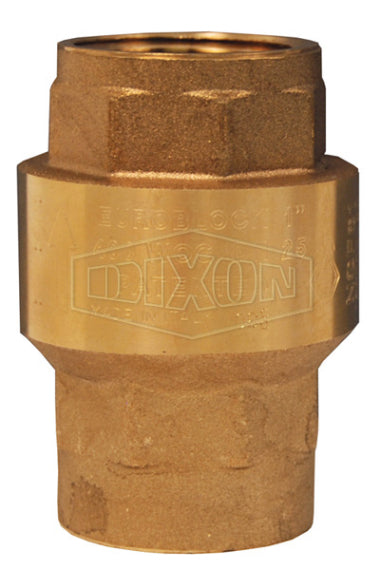

CV200 by Dixon Valve | Spring-Loaded Check Valve | 2" Female NPT x 2" Female NPT | Brass

CV200 by Dixon Valve | Spring-Loaded Check Valve | 2" Female NPT x 2" Female NPT | Brass

Sale price$101.77

Dixon Valve & Coupling
Spring-Loaded Check Valves
Buy More, Save More!
Quantity Price Each
5–19 $95.66
20–59 $86.50
60+ $76.33
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 2in Female NPT
  • 2in Female NPT
  • Some Ends Match
Material(s):
  • Brass
Features:
  • Soft seat for bubble tight shutoff, spring loaded for fast seating action.
  • Flow profile designed to minimize head loss.
Materials:
  • NBR seat.
Specifications:
  • Pressure rating :1/2" - 2" 400 PSI WOG; 3" - 4" 175 PSI WOG
  • Temperature range: 10°F to 210°F (-10°C to 100°C)
  • Cracking pressure: 0.50 PSI
Part Number Female NPT x Female NPT
CV050 1/2" x 1/2"
CV075 3/4" x 3/4"
CV100 1" x 1"
CV125 1-1/4" x 1-1/4"
CV150 1-1/2" x 1-1/2"
CV200 2" x 2"
CV300 3" x 3"
CV400 4" x 4"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
