CT400L by Dixon Valve | Style CT | Constant Torque Worm Gear Clamp | 5/8" Band Width | Hose OD Range: from 3-1/4" to 4-1/8" | 300 Stainless Steel Band | Carbon Steel Screw
Dixon Valve

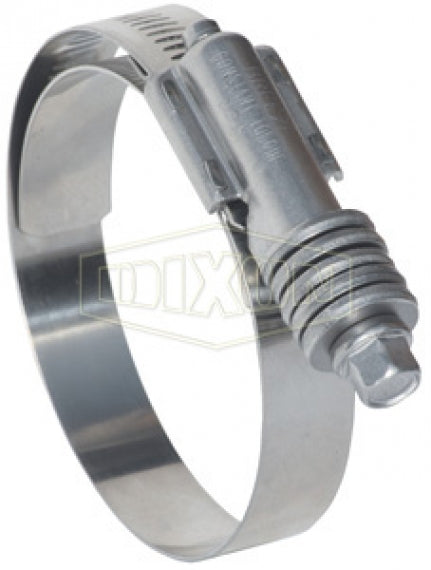

Constant Torque Worm Gear Clamp | Style CT
A patented Belleville spring mechanism permits the clamp to automatically increase or decrease its own diameter due to changes in operational or environmental temperatures.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $21.73 |
| 40–79 | $19.65 |
| 80+ | $17.34 |
Discounts applied in cart/checkout.
Product Data:
Series:
Material(s):
Clamp Width:
0.625"
Minimum Clamp I.D.:
3.25"
Maximum Clamp I.D.:
4.125"
| Construction: | |||
|---|---|---|---|
|
| Part Number | Band Width | Hose OD | |
|---|---|---|---|
| From | To | ||
| CT175L | 5/8" | 1" | 1-3/4" |
| CT200L | 5/8" | 1-1/4" | 2-1/8" |
| CT250L | 5/8" | 1-3/4" | 2-5/8" |
| CT300L | 5/8" | 2-1/4" | 3-1/8" |
| CT350L | 5/8" | 2-3/4" | 3-5/8" |
| CT400L | 5/8" | 3-1/4" | 4-1/8" |
| CT450L | 5/8" | 3-3/4" | 4-5/8" |
| CT500L | 5/8" | 4-1/4" | 5-1/8" |
| CT550L | 5/8" | 4-3/4" | 5-5/8" |
| CT600L | 5/8" | 5-1/4" | 6-1/8" |
| CT650L | 5/8" | 5-3/4" | 6-5/8" |
| CT700L | 5/8" | 6-1/4" | 7-1/8" |
| CT750L | 5/8" | 6-3/4" | 7-5/8" |
| CT800L | 5/8" | 7-1/4" | 8-1/8" |
| CT850L | 5/8" | 7-3/4" | 8-5/8" |
| CT900L | 5/8" | 8-1/4" | 9-1/8" |
| CT950L | 5/8" | 8-3/4" | 9-5/8" |
