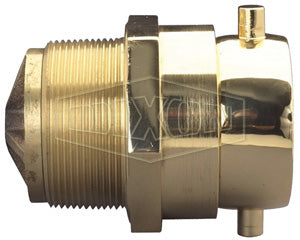

CSSTM30F30T-P Dixon Polished Cast Brass Spring Check Type Snoot - Pin Lug - Male Outlet - 3" Male NPT Outlet x 3" Female NST(NH) Inlet
Dixon Fire Fittings
Spring Check Type Snoot - Pin Lug
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $477.75 |
| 15–29 | $432.00 |
| 30+ | $381.18 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
| Features: | |||
|---|---|---|---|
|
|
Female Outlet -Female NPT rigid with hexagon by female hose thread to swivel -Connections are attached to the bodies with pipe nipples (not included) |
||||
 |
||||
|---|---|---|---|---|
| Part Number | Outlet Female NPT |
Inlet Female NST(NH) |
Finish | Weight (Lbs.) |
| CSSTF25F30T-P | 3" | 2-1/2" | Polished | 9.4000 |
| CSSTF25F30T-C | 3" | 2-1/2" | Polished Chrome Plated | 9.9800 |
| CSSTF30F30T-P | 3" | 3" | Polished | 5.2500 |
|
Male Outlet -Male NPT x 2-1/2" female hose thread to swivel -Used when a direct connection to bodies is desired |
||||
 |
||||
|---|---|---|---|---|
| Part Number | Outlet Male NPT |
Inlet Female NST(NH) |
Finish | Weight (Lbs.) |
| CSSTM25F30T-P | 3" | 2-1/2" | Polished | 7.5000 |
| CSSTM25F30T-C | 3" | 2-1/2" | Polished Chrome Plated | - |
| CSSTM30F30T-P | 3" | 3" | Polished | 8.1000 |
| CSSTM30F30T-C | 3" | 3 | Polished Chrome Plated | 8.5000 |
