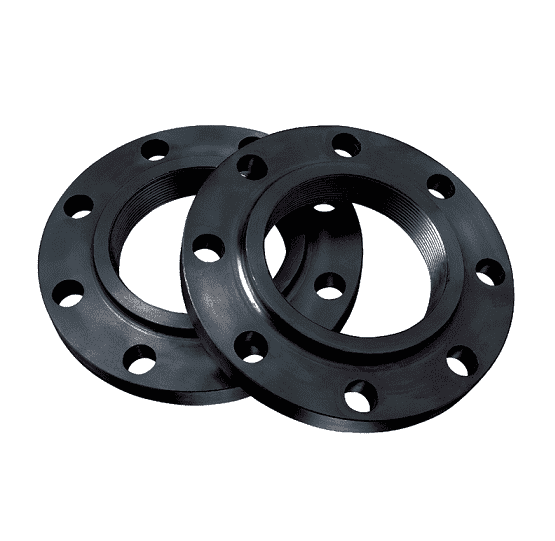

CSRFTHD1500300 by Kuriyama | Forged Raised Face Threaded Flange 150# | Size: 3" | OD: 7-1/2" | Bore: 3.570" | Thickness: 1-1/4" | Carbon Steel
Kuriyama Couplings™ - Carbon Steel Forged Raised Face Threaded Flange 150#
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $57.58 |
| 40–79 | $52.07 |
| 80+ | $45.95 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
| Applications: | |||
|---|---|---|---|
|
|||
| Features: | |||
|
|||
| Materials: | |||
|
|||
| Dimensions: | |||
|
|
| Part Number | Size(in.) | OD A(in.) | Bore B | Circle C(in.) | Thickness(in.) | NumberBolt Holes | Diameter BoltHoles (in.) | Weight (Lbs.) |
|---|---|---|---|---|---|---|---|---|
| CSRFTHD1500150 | 1-1/2" | 5" | 1.950 | 3-7/8" | 7/8" | 4 | 5/8" | 3.60 lbs. |
| CSRFTHD1500200 | 2" | 6" | 2.440 | 4-3/4" | 1" | 4 | 3/4" | 5.07 lbs. |
| CSRFTHD1500250 | 2-1/2" | 7" | 2.940 | 5-1/2" | 1-1/8" | 4 | 3/4" | 7.05 lbs. |
| CSRFTHD1500300 | 3" | 7-1/2" | 3.570 | 6" | 1-1/4" | 4 | 3/4" | 7.94 lbs. |
| CSRFTHD1500400 | 4" | 9" | 4.570 | 7-1/2" | 1-3/8" | 8 | 3/4" | 13.01 lbs. |
| CSRFTHD1500600 | 6" | 11" | 6.720 | 9-1/2" | 1-1/2" | 8 | 7/8" | 18.74 lbs. |
| CSRFTHD1500800 | 8" | 13-1/2" | 8.720 | 11-3/4" | 1-3/4" | 8 | 7/8" | 29.98 lbs. |
| CSRFTHD1501000 | 10" | 16" | 10.880 | 14-1/4" | 2" | 12 | 1" | 42.99 lbs. |
| CSRFTHD1501200 | 12" | 19" | 12.880 | 17" | 2-1/8" | 12 | 1" | 63.93 lbs. |
