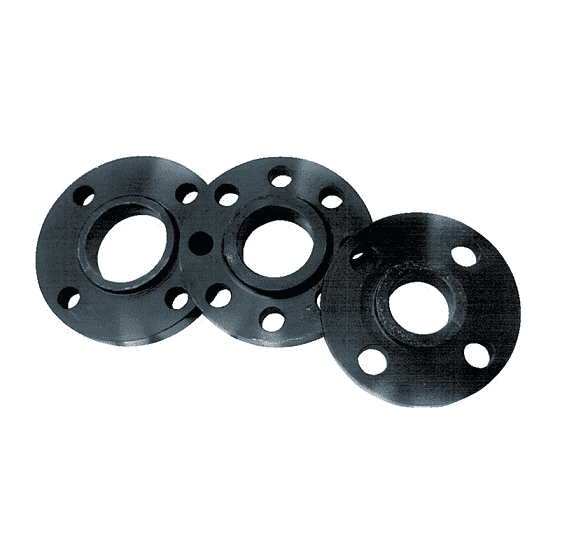

CSRF1500600 by Kuriyama | Forged Raised Face Slip-On Flange 150# | Size: 6" | OD: 11" | Bore: 6.720" | Thickness: 7/8" | Carbon Steel
Kuriyama Couplings™ - Carbon Steel Forged Raised Face Slip-On Flange 150#
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $123.54 |
| 20–59 | $111.72 |
| 60+ | $98.57 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
| Applications: | |||
|---|---|---|---|
|
|||
| Features: | |||
|
|||
| Materials: | |||
|
|||
| Dimensions: | |||
|
|
| Part Number | Size (in.) | OD A (in.) | Bore B | Circle C (in.) | Thickness (in.) | Number Bolt Holes | Diameter Bolt Holes (in.) | Weight (Lbs.) |
|---|---|---|---|---|---|---|---|---|
| CSRF1500125 | 1-1/4" | 4-5/8" | 1.700 | 3-1/2" | 7/8" | 4 | 5/8" | 3.09 lbs. |
| CSRF1500150 | 1-1/2" | 5" | 1.950 | 3-7/8" | 7/8" | 4 | 5/8" | 3.60 lbs. |
| CSRF1500200 | 2" | 6" | 2.440 | 4-3/4" | 1" | 4 | 3/4" | 5.07 lbs. |
| CSRF1500300 | 3" | 7-1/2" | 3.570 | 6" | 1-1/4" | 4 | 3/4" | 7.94 lbs. |
| CSRF1500400 | 4" | 9" | 4.570 | 7-1/2" | 1-3/8" | 8 | 3/4" | 13.01 lbs. |
| CSRF1500600 | 6" | 11" | 6.720 | 9-1/2" | 1-1/2" | 8 | 7/8" | 18.74 lbs. |
| CSRF1500800 | 8" | 13-1/2" | 8.720 | 11-3/4" | 1-3/4" | 8 | 7/8" | 29.98 lbs. |
| CSRF1501000 | 10" | 16" | 10.880 | 14-1/4" | 2" | 12 | 1" | 42.99 lbs. |
| CSRF1501400 | 14" | 21" | 14.140 | 18-3/4" | 2-1/4" | 12 | 1-1/8" | 90.39 lbs. |
