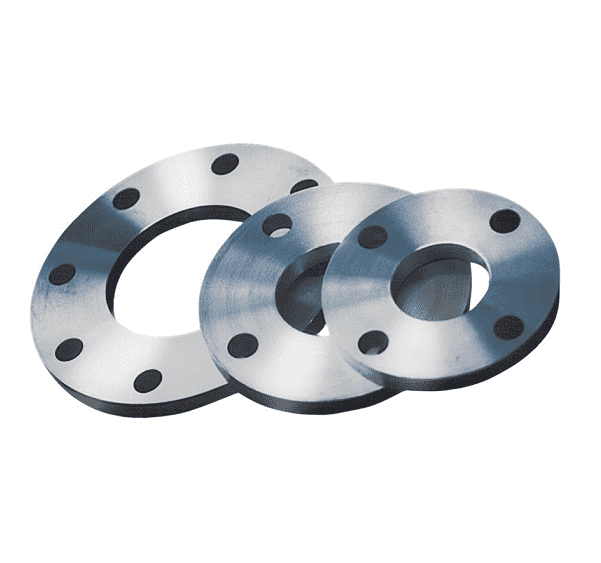

CSPF1000 by Kuriyama | Forged Plate Flange 150# | Size: 10" | OD: 16" | Bore: 10.880" | Thickness: 1" | Carbon Steel
Kuriyama Couplings™ - Carbon Steel Forged Plate Style Flanges - Carbon Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $215.75 |
| 20–59 | $195.09 |
| 60+ | $172.14 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
| Applications: | |||
|---|---|---|---|
|
|||
| Features: | |||
|
|||
| Materials: | |||
|
|||
| Dimensions: | |||
|
|
| Part Number | Size (in.) | OD A (in.) | Bore B | Circle C (in.) | Thickness (in.) | Number Bolt Holes | Diameter Bolt Holes (in.) | Weight (Lbs.) |
|---|---|---|---|---|---|---|---|---|
| CSPF0075 | 3/4" | 3-7/8" | 1.100 | 2-3/4" | 1/2" | 4 | 5/8" | 1.36 lbs. |
| CSPF0150 | 1-1/2" | 5" | 1.950 | 3-7/8" | 5/8" | 4 | 5/8" | 2.70 lbs. |
| CSPF0200 | 2" | 6" | 2.440 | 4-3/4" | 5/8" | 4 | 3/4" | 4.10 lbs. |
| CSPF0250 | 2-1/2" | 7" | 2.940 | 5-1/2" | 5/8" | 4 | 3/4" | 5.35 lbs. |
| CSPF0300 | 3" | 7-1/2" | 3.570 | 6" | 5/8" | 4 | 3/4" | 5.80 lbs. |
| CSPF0400 | 4" | 9" | 4.570 | 7-1/2" | 5/8" | 8 | 3/4" | 8.00 lbs. |
| CSPF0500 | 5" | 10" | 5.660 | 8-1/2" | 3/4" | 8 | 7/8" | 10.37 lbs. |
| CSPF0600 | 6" | 11" | 6.720 | 9-1/2" | 3/4" | 8 | 7/8" | 11.76 lbs. |
| CSPF0800 | 8" | 13-1/2" | 8.720 | 11-3/4" | 1" | 8 | 7/8" | 22.48 lbs. |
| CSPF1000 | 10" | 16" | 10.880 | 14-1/4" | 1" | 12 | 1" | 26.83 lbs. |
| CSPF1200 | 12" | 19" | 12.880 | 17" | 1" | 12 | 1" | 42.30 lbs. |
