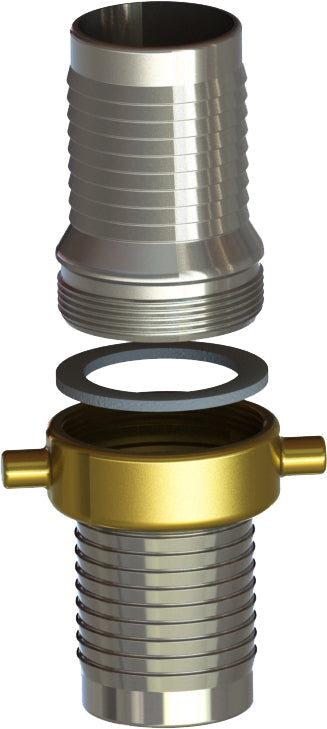

CSB-16 by Campbell Fittings | Suction Hose Coupling | Complete Set | 4" Male NPSM Thread x 4" Female NPSM Thread x 4" Hose Shank | Nut: Brass | Plated Steel Shank

CSB-16 by Campbell Fittings | Suction Hose Coupling | Complete Set | 4" Male NPSM Thread x 4" Female NPSM Thread x 4" Hose Shank | Nut: Brass | Plated Steel Shank

Sale price$132.29

by Campbell
Suction Hose Couplings:CSB Complete Set
Buy More, Save More!
Quantity Price Each
5–19 $124.35
20–59 $112.45
60+ $99.22
Discounts applied in cart/checkout.

Product Data:

Series:
  • CSB Series
Shape:

Straight

Ends Configuration:
  • 4in Male NPSM
  • 4in Female NPSM
  • 4in Hose Barb
  • 4in Hose Barb
  • Some Ends Match
Recommended Use:
  • Liquid, bulk handling
Recommended Hose Attachments:
  • Sleeves
  • Preformed Bands Clamps
Features and Benefits:
  • Maximum number of serrations for maximum holding power
  • Long lead serration for easier hose insertion
  • Suction Couplings machined from pipe eliminate porosity and parting lines, improving sealing and retention.
Part Number Hose Size
CSB-5 1-1/4"
CSB-6 1-1/2"
CSB-8 2"
CSB-10 2-1/2"
CSB-12 3"
CSB-16 4"
CSB-24 6"
CSB-32 8"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
