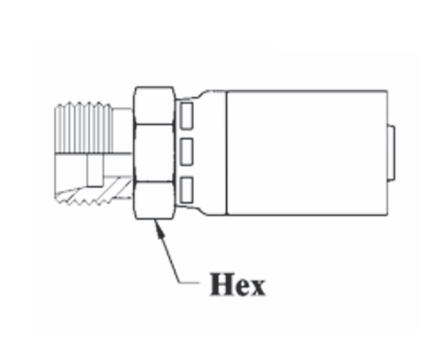

CS67-6X12 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x M20x1.5 Thread Din Heavy 24° Seat Male Solid | Straight | Trivalent Zinc Plating | Replaces: 6M62V

CS67-6X12 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x M20x1.5 Thread Din Heavy 24° Seat Male Solid | Straight | Trivalent Zinc Plating | Replaces: 6M62V

Sale price$14.32

Couplamatic Systems Inc.
Vari-Crimp Couplings - DIN Heavy 24° Seat - Male Solid
Buy More, Save More!
Quantity Price Each
10–39 $13.46
40–79 $12.17
80+ $10.74
Discounts applied in cart/checkout.

Product Data:

Series:
  • VARI-CRIMP Series
Shape:

Straight

Ends Configuration:
  • S12 Male DIN
  • 3/8in Hose Barb
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
Part Number Hose ID Thread Size Tube Size Hex Size PreviousPart Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS67-4X8 1/4" M16x1.5 8mm 11/16" 4M58V HY04-08MZ16A 1D2HY-8-4 04U-08F
CS67-4X10 1/4" M18x1.5 10mm 3/4" 4M60V HY04-10MZ18A 1D0HY-10-4 04U-10F
CS67-6X10 3/8" M18x1.5 10mm 3/4" 6M60V HY06-10MZ18A - 06U-10F
CS67-6X12 3/8" M20x1.5 12mm 13/16" 6M62V HY06-12MZ20A 1D2HY-12-6 06U-12F
CS67-6X14 3/8" M22x1.5 14mm 7/8" 6M64V - - -
CS67-8X16 1/2" M24x1.5 16mm 7/8" 8M66V HY08-16MZ24A 1D2HY-16-8 08U-16F
CS67-10X20 5/8" M30x2.0 20mm 1-1/4" 10M70V - - -

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
