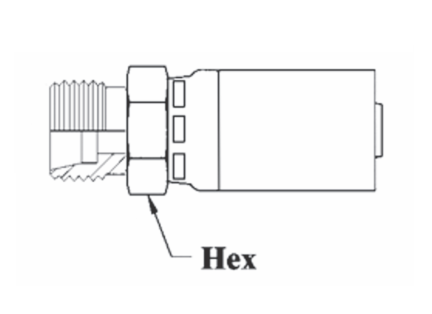

CS66-10X18 by Couplamatic | VARI-CRIMP Coupling | 5/8" Hose ID x M26x1.5 Thread Male Solid DIN Light 24° Seat | Straight | Trivalent Zinc Plating | Replaces: 10M18V

CS66-10X18 by Couplamatic | VARI-CRIMP Coupling | 5/8" Hose ID x M26x1.5 Thread Male Solid DIN Light 24° Seat | Straight | Trivalent Zinc Plating | Replaces: 10M18V

Sale price$22.46

Couplamatic Systems Inc.
Vari-Crimp Couplings - DIN Light 24° Seat - Male Solid
Buy More, Save More!
Quantity Price Each
10–39 $21.11
40–79 $19.09
80+ $16.85
Discounts applied in cart/checkout.

Product Data:

Series:
  • VARI-CRIMP Series
Shape:

Straight

Ends Configuration:
  • L18 Male DIN
  • 5/8in Hose Barb
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
Part Number Hose ID Thread Size Tube OD Hex Size PreviousPart Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS66-4X8 1/4" M14x1.5 8mm 9/16" 4M08V HY04-08MZ14A 1D0HY-8-4 04U-08A
CS66-6X10 3/8" M16x1.5 10mm 3/4" 6M10V HY06-10MZ16A 1D0HY-10-6 06U-10A
CS66-6X12 3/8" M18x1.5 12mm 3/4" 6M12V HY06-12MZ18A 1D0HY-12-6 06U-12A
CS66-8X15 1/2" M22x1.5 15mm 7/8" 8M15V HY08-15MZ22A 1D0HY-15-8 08U-15A
CS66-10X18 5/8" M26x1.5 18mm 1-1/16" 10M18V - - 10U-18A
CS66-12X22 3/4" M30x2.0 22mm 1-1/4" 12M22V HY12-22MZ30B - 12U-22A

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
