CS50-8X12 by Couplamatic | VARI-CRIMP Coupling | 1/2" Hose ID x 3/4" Split Flange Size | Code 61 | 45° Elbow | Trivalent Zinc Plating | Replaces: 8G42V
Couplamatic Systems Inc.
Vari-Crimp Couplings - Code 61 Split Flange - 45° Bend
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $28.69 |
| 40–79 | $25.94 |
| 80+ | $22.89 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
45 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|

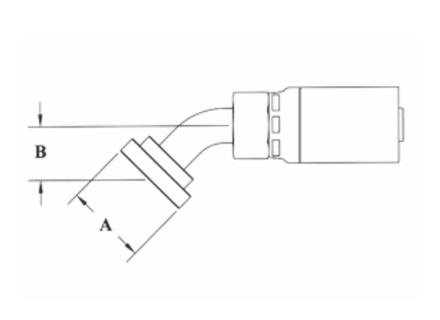

| Part Number | Hose ID | Flange Size | A-Dia. Inches | B-Drop Inches | PreviousPart Number | Cross Reference Part Numbers | ||
|---|---|---|---|---|---|---|---|---|
| Dayco HY | Parker HY | |||||||
| CS50-8X8 | 1/2" | 1/2" | 1.19" | 0.78" | 8G41V | HY08-08PA45 | 117HY-8-8 | 08U-G41 |
| CS50-8X12 | 1/2" | 3/4" | 1.50" | 0.82" | 8G42V | - | - | - |
| CS50-12X12 | 3/4" | 3/4" | 1.50" | 1.00" | 12G42V | HY12-12PA45 | 117HY-12-12 | 12U-G42 |
| CS50-12X16 | 3/4" | 1" | 1.75" | 1.00" | 12G46V | - | - | 12U-G46 |
| CS50-16X16 | 1" | 1" | 1.75" | 1.12" | 16G46V | HY16-16PA45 | - | 16U-G46 |
| CS50-16X20 | 1" | 1-1/4" | 2.00" | 1.12" | 16G50V | - | - | 16U-G50 |
| CS50-20X20 | 1-1/4" | 1-1/4" | 2.00 | 1.12" | 20G50V | - | - | 20U-G50 |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
