CS36-8X6 by Couplamatic | VARI-CRIMP Coupling | 1/2" Hose ID x G-3/8-19 Thread Male Pipe Solid | 3/8" BSPP | Straight | Trivalent Zinc Plating | Replaces: 8P56V
Couplamatic Systems Inc.

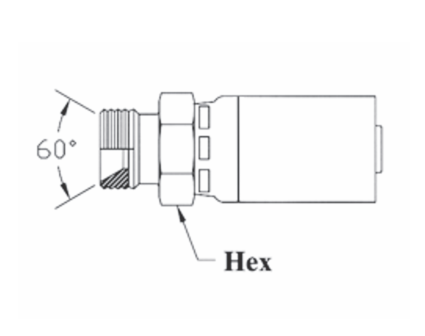

Vari-Crimp Couplings - BSPP - British Standard Parallel 60° Seat - Male Pipe Solid
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $12.14 |
| 40–79 | $10.98 |
| 80+ | $9.69 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|
| Part Number | Hose ID | BSPP Size | Thread Size | Hex Size | PreviousPart Number | Cross Reference Part Numbers | ||
|---|---|---|---|---|---|---|---|---|
| Dayco HY | Parker HY | Weatherhead U | ||||||
| CS36-4X4 | 1/4" | 1/4" | G-1/4-19 | 11/16" | 4P54V | HY04-04BP | 1D9HY-4-4 | 04U-P54 |
| CS36-6X6 | 3/8" | 3/8" | G-3/8-19 | 3/4" | 6P56V | HY06-06BP | 1D9HY-6-6 | 06U-P56 |
| CS36-6X8 | 3/8" | 1/2" | G-1/2-14 | 1" | 6P58V | HY06-08BP | 1D9HY-8-6 | 06U-P58 |
| CS36-8X6 | 1/2" | 3/8" | G-3/8-19 | 7/8" | 8P56V | HY08-06BP | - | 08U-P56 |
| CS36-8X8 | 1/2" | 1/2" | G-1/2-14 | 1" | 8P58V | HY08-08BP | 1D9HY-8-8 | 08U-P58 |
| CS36-12X12 | 3/4" | 3/4" | G-3/4-14 | 1-1/8" | 12P62V | HY12-12BP | - | 12U-P62 |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
