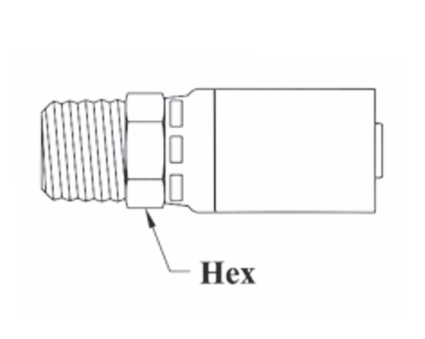

CS35-4X4 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x R-1/4-19 Thread Male Pipe Solid | 1/4" BSPT | Straight | Trivalent Zinc Plating | Replaces: 4T54V

CS35-4X4 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x R-1/4-19 Thread Male Pipe Solid | 1/4" BSPT | Straight | Trivalent Zinc Plating | Replaces: 4T54V

Minimum Order Quantity: 5 Units

Sale price$8.14

Couplamatic Systems Inc.
Vari-Crimp Couplings - BSPT - British Standard Tapered - Male Pipe Solid
Buy More, Save More!
Quantity Price Each
20–39 $7.65
40–79 $6.92
80+ $6.11
Discounts applied in cart/checkout.

Product Data:

Series:
  • VARI-CRIMP Series
Shape:

Straight

Ends Configuration:
  • 1/4in Male BSPT
  • 1/4in Hose Barb
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
  • R. as part of thread size is ISO designation for tapered thread
Part Number Hose ID BSPT Size Thread Size Hex Size PreviousPart Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS35-4X4 1/4" 1/4" R-1/4-19 5/8" 4T54V HY04-04BT 1UTHY-4-4 04U-154
CS35-6X6 3/8" 3/8" R-3/8-19 3/4" 6T56V HY06-06BT 1UTHY-6-6 06U-156
CS35-8X8 1/2" 1/2" R-1/2-14 7/8" 8T58V HY08-08BT 1UTHY-8-8 08U-158
CS21-12X12 3/4" 3/4" R-3/4-14 1-1/8" 12T62V HY12-12BT - 12U-162

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
