CS33-12X12 by Couplamatic | VARI-CRIMP Coupling | 3/4" Hose ID x 1-3/16x12 Thread O-Ring Face Seal | ORF Female Swivel Long Drop | 90° Elbow | Trivalent Zinc Plating | Replaces: 12A72V
Couplamatic Systems Inc.
Vari-Crimp Couplings - O-Ring Face Seal (ORF) - 90° Female Swivel Long Drop
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $26.45 |
| 40–79 | $23.92 |
| 80+ | $21.11 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|

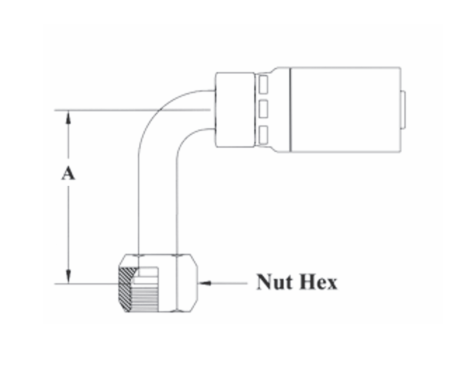

| Part Number | Hose ID | Thread Size | Tube OD | A-Drop Inches | Nut Hex | PreviousPart Number | Cross Reference Part Numbers | ||
|---|---|---|---|---|---|---|---|---|---|
| Dayco HY | Parker HY | Weatherhead U | |||||||
| CS33-4X4 | 1/4" | 9/16x18 | 1/4" | 1.80 | 11/16" | 4A64V | HY04-04OF90TL | 1J1HY-4-4 | 04U-A64 |
| CS33-4X6 | 1/4" | 11/16x16 | 3/8" | 2.31 | 13/16" | 4A66V | - | - | 04U-A66 |
| CS33-6X6 | 3/8" | 11/16x16 | 3/8" | 2.13 | 13/16" | 6A66V | HY06-06OF90TL | 1J1HY-6-6 | 06U-A66 |
| CS33-6X8 | 3/8" | 13/16x16 | 1/2" | 2.51 | 15/16" | 6A68V | HY06-08OF90TL | 1J1HY-8-6 | 06U-A68 |
| CS33-8X8 | 1/2" | 13/16x16 | 1/2" | 2.51 | 15/16" | 8A68V | HY08-08OF90TL | 1J1HY-8-8 | 08U-A68 |
| CS33-8X10 | 1/2" | 1x14 | 5/8" | 2.76 | 1-1/8" | 8A70V | HY08-10OF90TL | 1J1HY-10-8 | 08U-A70 |
| CS33-10X10 | 5/8" | 1x14 | 5/8" | 2.76 | 1-1/8" | 10A70V | HY10-10OF90TL | 1J1HY-10-8 | 10U-A70 |
| CS33-12X12 | 3/4" | 1-3/16x12 | 3/4" | 3.78 | 1-3/8" | 12A72V | HY12-12OF90TL | 1J1HY-12-12 | 12U-A72 |
| CS33-16X16 | 1" | 1-7/16x12 | 1" | 4.50 | 1-5/8" | 16A76V | HY16-16OF90TL | 1J1HY-16-16 | 16U-A76 |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
