CS28-6X6 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x 9/16x18 Thread Tube Repair Couplings | Straight | Trivalent Zinc Plating | Replaces: 6106V | Pack of 5
Couplamatic Systems Inc.
Vari-Crimp Couplings - Tube Repair Couplings
Package Quantity: 5 EA
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $37.23 |
| 40–79 | $33.67 |
| 80+ | $29.71 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|

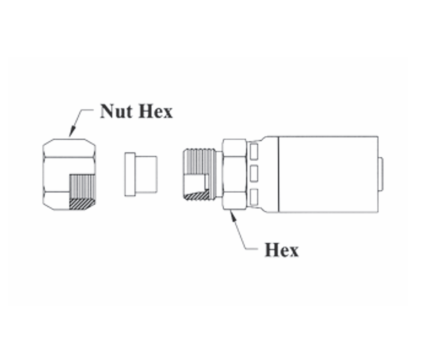

| Part Number | Hose ID | Thread Size | Tube OD | Hex Size | Nut Hex | Previous Part Number | Cross Reference Part Numbers | ||
|---|---|---|---|---|---|---|---|---|---|
| Dayco HY | Parker HY | Weatherhead U | |||||||
| CS28-4X4 | 1/4" | 7/16x20 | 1/4" | 9/16" | 9/16" | 4100V | HY04-04MV | 111HY-4-4 | 04U-754 |
| CS28-4X5 | 1/4" | 1/2x20 | 5/16" | 5/8" | 5/8" | 4103V | HY04-05MV | - | 04U-755 |
| CS28-6X5 | 3/8" | 1/2x20 | 5/16" | 11/16" | 5/8" | 6103V | HY06-05MV | 111HY-5-6 | 06U-755 |
| CS28-6X6 | 3/8" | 9/16x18 | 3/8" | 11/16" | 11/16" | 6106V | HY06-06MV | 111HY-6-6 | 06U-756 |
| CS28-6X8 | 3/8" | 3/4x16 | 1/2" | 3/4" | 7/8" | 6800V | HY06-08MV | 111HY-8-6 | - |
| CS28-8X8 | 1/2" | 3/4x16 | 1/2" | 7/8" | 7/8" | 8103V | HY08-08MV | 111HY-8-8 | 08U-758 |
| CS28-8X10 | 1/2" | 7/8x14 | 5/8" | 15/16" | 1" | 8106V | HY08-10MV | 111HY-10-8 | 08U-760 |
| CS28-12X12 | 3/4" | 1-1/16x12 | 3/4" | 1-1/8" | 1-1/4" | 12100V | HY12-12MV | 111HY-12-12 | 12U-762 |
| CS28-16X16 | 1" | 1-5/16x12 | 1" | 1-3/8" | 1-1/2" | 16100V | HY16-16MV | 111HY-16-16 | 16U-766 |
| Nuts and Sleeves | ||
|---|---|---|
| Tube Size | Nut Part Number | Sleeve Part Number |
| 1/4" | 718x4 | 719x4 |
| 5/16" | 718x5 | 719x5 |
| 3/8" | 718x6 | 719x6 |
| 1/2" | 718x8 | 719x8 |
| 5/8" | 718x10 | 719x10 |
| 3/4" | 718x12 | 719x12 |
| 1" | 718x16 | 719x16 |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
