CS18-6X4 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x 7/16x24 Thread Male Inverted Flare | Straight | Trivalent Zinc Plating | Replaces: 6175V
Couplamatic Systems Inc.
Vari-Crimp Couplings - Male Inverted Flare
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $13.77 |
| 40–79 | $12.45 |
| 80+ | $10.99 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|

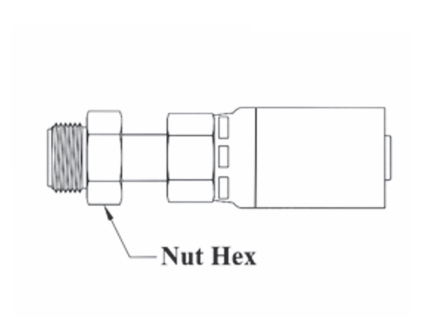

| Part Number | Hose ID | Thread Size | Tube OD | Nut Hex | PreviousPart Number | Cross Reference Part Numbers | ||
|---|---|---|---|---|---|---|---|---|
| Dayco HY | Parker HY | Weatherhead U | ||||||
| CS18-4X3 | 1/4" | 3/8x24 | 3/16" | 3/8" | 4169V | HY04-03MF | 128HY-3-4 | 04U-B03 |
| CS18-4X4 | 1/4" | 7/16x24 | 1/4" | 7/16" | 4106V | HY04-04MF | 128HY-4-4 | 04U-B04 |
| CS18-4X5 | 1/4" | 1/2x20 | 5/16" | 1/2" | 4133V | HY04-05MF | 128HY-5-4 | 04U-B05 |
| CS18-6X4 | 3/8" | 7/16x24 | 1/4" | 7/16" | 6175V | HY06-04MF | - | 06U-B04 |
| CS18-6X5 | 3/8" | 1/2x20 | 5/16" | 1/2" | 6109V | HY06-05MF | 128HY-5-6 | 06U-B05 |
| CS18-6X6 | 3/8" | 5/8x18 | 3/8" | 5/8" | 6136V | HY06-06MF | 128HY-6-6 | 06U-B06 |
| CS18-6X7 | 3/8" | 11/16x18 | 7/16" | 11/16" | 6193V | HY06-07MF | 128HY-7-6 | 06U-B07 |
| CS18-8X8 | 1/2" | 3/4x18 | 1/2" | 3/4" | 8109V | HY08-08MF | 128HY-8-8 | 08U-B08 |
| CS18-8X10 | 1/2" | 7/8x18 | 5/8" | 7/8" | 8136V | - | - | 08U-B10 |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
