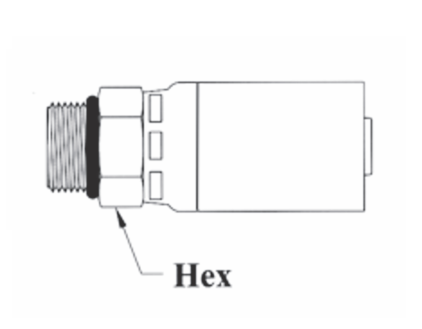

CS11-4X4 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x 7/16x20 Thread ORB Male Solid | Straight | Trivalent Zinc Plating | Replaces: 451V
Minimum Order Quantity: 5 Units
Couplamatic Systems Inc.
Vari-Crimp Couplings - ORB - Male Solid
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $6.93 |
| 40–79 | $6.26 |
| 80+ | $5.53 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|
| Part Number | Hose ID | Thread Size | Tube OD | Hex Size | Previous Part Number | Cross Reference Part Numbers | ||
|---|---|---|---|---|---|---|---|---|
| Dayco HY | Parker HY | Weatherhead U | ||||||
| CS11-4X4 | 1/4" | 7/16x20 | 1/4" | 9/16" | 451V | HY04-04RA | 105HY-4-4 | 04U-P04 |
| CS11-4X5 | 1/4" | 1/2x20 | 5/16" | 5/8" | 454V | HY04-05RA | 105HY-5-4 | 04U-P05 |
| CS11-4X6 | 1/4" | 9/16x18 | 3/8" | 11/16" | 448V | HY04-06RA | 105HY-6-4 | 04U-P06 |
| CS11-6X6 | 3/8" | 9/16x18 | 3/8" | 11/16" | 636V | HY06-06RA | 105HY-6-6 | 06U-P06 |
| CS11-6X8 | 3/8" | 3/4x16 | 1/2" | 7/8" | 639V | HY06-08RA | 105HY-8-6 | 06U-P08 |
| CS11-6X10 | 3/8" | 7/8x14 | 5/8" | 1" | 642V | HY06-10RA | 105HY-10-6 | 06U-P10 |
| CS11-8X8 | 1/2" | 3/4x16 | 1/2" | 7/8" | 830V | HY08-08RA | 105HY-8-8 | 08U-P08 |
| CS11-8X10 | 1/2" | 7/8x14 | 5/8" | 1" | 833V | HY08-10RA | 105HY-10-8 | 08U-P10 |
| CS11-8X12 | 1/2" | 1-1/16x12 | 3/4" | 1-1/4" | 860V | HY08-12RA | 105HY-12-8 | 08U-P12 |
| CS11-10X8 | 5/8" | 3/4x16 | 1/2" | 15/16" | 1030V | HY10-08RA | - | 10U-P08 |
| CS11-10X10 | 5/8" | 7/8x14 | 5/8" | 1" | 1033V | HY10-10RA | 105HY-10-10 | 10U-P10 |
| CS11-10X12 | 5/8" | 1-1/16x12 | 3/4" | 1-1/4" | 1036V | - | - | 10U-P12 |
| CS11-12X10 | 3/4" | 7/8x14 | 5/8" | 1-1/8" | 1248V | HY12-10RA | 105HY-10-12 | 12U-P10 |
| CS11-12X12 | 3/4" | 1-1/16x12 | 3/4" | 1-1/4" | 1227V | HY12-12RA | 105HY-12-12 | 12U-P12 |
| CS11-16X16 | 1" | 1-5/16x12 | 1" | 1-1/2" | 1630V | HY16-16RA | 105HY-16-16 | 16U-P16 |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
