CS09-16X16 by Couplamatic | VARI-CRIMP Coupling | 1" Hose ID x 1-5/16x12 Thread JIC 37° Female Solid | Straight | Trivalent Zinc Plating | Replaces: 1618V | Pack of 10
Couplamatic Systems Inc.
Vari-Crimp Couplings - JIC 37° - Female Swivel
Package Quantity: 10 EA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $137.31 |
| 20–59 | $124.16 |
| 60+ | $109.55 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|

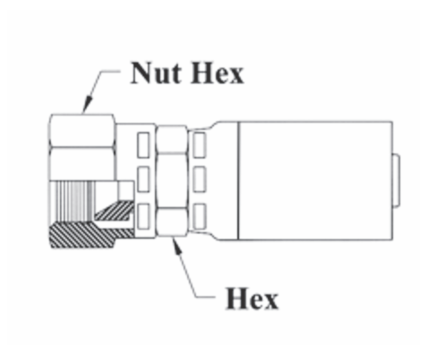

| Part Number | Hose ID | Thread Size | Tube OD | Hex Size | Nut Hex | Previous Part Number | Cross Reference Part Numbers | ||
|---|---|---|---|---|---|---|---|---|---|
| Dayco HY | Parker HY | Weatherhead U | |||||||
| CS09-3X4 | 3/16" | 7/16x20 | 1/4" | 5/8" | 9/16" | 324V | - | - | - |
| CS09-4X4 | 1/4" | 7/16x20 | 1/4" | 9/16" | 9/16" | 424V | HY04-04FJ | 106HY-4-4 | 04U-604 |
| CS09-4X5 | 1/4" | 1/2x20 | 5/16" | 9/16" | 5/8" | 427V | HY04-05FJ | 106HY-5-4 | 04U-605 |
| CS09-4X6 | 1/4" | 9/16x18 | 3/8" | 9/16" | 11/16" | 433V | HY04-06FJ | 106HY-6-4 | 04U-606 |
| CS09-6X4 | 3/8" | 7/16x20 | 1/4" | 11/16" | 9/16" | 675V | HY06-04FJ | 106HY-4-6 | 06U-604 |
| CS09-6X6 | 3/8" | 9/16x18 | 3/8" | 11/16" | 11/16" | 627V | HY06-06FJ | 106HY-6-6 | 06U-606 |
| CS09-6X8 | 3/8" | 3/4x16 | 1/2" | 11/16" | 7/8" | 630V | HY06-08FJ | 106HY-8-6 | 06U-608 |
| CS09-6X10 | 3/8" | 7/8x14 | 5/8" | 7/8" | 1" | 657V | HY06-10FJ | 106HY-10-6 | 06U-610 |
| CS09-6X12 | 3/8" | 1-1/16x12 | 3/4" | 1" | 1-1/4" | 691V | HY06-12FJ | 106HY-12-6 | 06U-612 |
| CS09-8X6 | 1/2" | 9/16x18 | 3/8" | 13/16" | 11/16" | 842V | HY08-06FJ | 106HY-6-8 | 08U-606 |
| CS09-8X8 | 1/2" | 3/4x16 | 1/2" | 13/16" | 7/8" | 824V | HY08-08FJ | 106HY-8-8 | 08U-608 |
| CS09-8X10 | 1/2" | 7/8x14 | 5/8" | 7/8" | 1" | 827V | HY08-10FJ | 106HY-10-8 | 08U-610 |
| CS09-8X12 | 1/2" | 1-1/16x12 | 3/4" | 1-1/8" | 1-1/4" | 845V | HY08-12FJ | 106HY-12-8 | 08U-612 |
| CS09-8X16 | 1/2" | 1-5/16x12 | 1" | 1-1/4" | 1-1/2" | 863V | HY08-16FJ | 106HY-16-8 | 08U-616 |
| CS09-10X8 | 5/8" | 3/4x16 | 1/2" | 15/16" | 7/8" | 1024V | HY10-08FJ | 106HY-8-10 | 10U-608 |
| CS09-10X10 | 5/8" | 7/8x14 | 5/8" | 15/16" | 1" | 1027V | HY10-10FJ | 106HY-10-10 | 10U-610 |
| CS09-10X12 | 5/8" | 1-1/16x12 | 3/4" | 1-1/8" | 1-1/4" | 1021V | HY10-12FJ | 106HY-12-10 | 10U-612 |
| CS09-12X10 | 3/4" | 7/8x14 | 5/8" | 1-1/8" | 1" | 1230V | HY12-10FJ | 106HY-10-12 | 12U-610 |
| CS09-12X12 | 3/4" | 1-1/16x12 | 3/4" | 1-1/8" | 1-1/4" | 1221V | HY12-12FJ | 106HY-12-12 | 12U-612 |
| CS09-12X14 | 3/4" | 1-3/16x12 | 7/8" | 1-1/4" | 1-1/2" | 1245V | HY12-14FJ | 106HY-14-12 | 12U-614 |
| CS09-12X16 | 3/4" | 1-5/16x12 | 1" | 1-3/8" | 1-1/2" | 1236V | HY12-16FJ | 106HY-16-12 | 12U-616 |
| CS09-16X12 | 1" | 1-1/16x12 | 3/4" | 1-3/8" | 1-1/4" | 1621V | HY16-12FJ | 106HY-12-16 | 16U-612 |
| CS09-16X16 | 1" | 1-5/16x12 | 1" | 1-3/8" | 1-1/2" | 1618V | HY16-16FJ | 106HY-16-16 | 16U-616 |
| CS09-16X20 | 1" | 1-5/8x12 | 1-1/4" | 1-11/16" | 2" | 1624V | HY16-20FJ | 106HY-20-16 | 16U-620 |
| CS09-20X20 | 1-1/4" | 1-5/8x12 | 1-1/4" | 1-11/16" | 2" | 2005V | HY20-20FJ | 106HY-20-20 | 20U-620 |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
