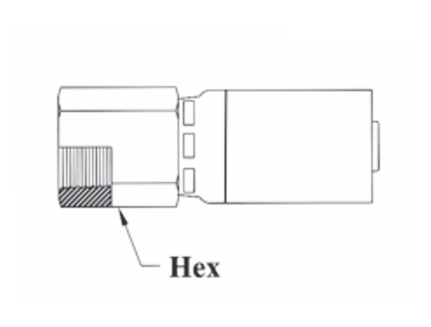

CS02-4X2 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x 1/8-27 Thread Female Solid NPTF | Straight | Trivalent Zinc Plating | Replaces: 436V
Minimum Order Quantity: 5 Units
Couplamatic Systems Inc.
Vari-Crimp Couplings - NPTF - Female Solid
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $6.84 |
| 40–79 | $6.19 |
| 80+ | $5.46 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|
| Part Number | Hose ID | Pipe Size | Thread Size | Nut Hex | Previous Part Number | Cross Reference Part Numbers | ||
|---|---|---|---|---|---|---|---|---|
| Dayco HY | Parker HY | Weatherhead U | ||||||
| CS02-4X2 | 1/4" | 1/8" | 1/8-27 | 5/8" | 436V | HY04-02FF | 102HY-2-4 | 04U-202 |
| CS02-4X4 | 1/4" | 1/4" | 1/4-18 | 3/4" | 412V | HY04-04FF | 102HY-4-4 | 04U-204 |
| CS02-6X4 | 3/8" | 1/4" | 1/4-18 | 3/4" | 663V | HY06-04FF | 102HY-4-6 | 06U-204 |
| CS02-6X6 | 3/8" | 3/8" | 3/8-18 | 7/8" | 612V | HY06-06FF | 102HY-6-6 | 06U-206 |
| CS02-6X8 | 3/8" | 1/2" | 1/2-14 | 1" | 688V | HY06-08FF | 102HY-8-6 | - |
| CS02-8X8 | 1/2" | 1/2" | 1/2-14 | 1" | 812V | HY08-08FF | 102HY-8-8 | 08U-208 |
| CS02-12X12 | 3/4" | 3/4" | 3/4-14 | 1-1/4" | 1212V | HY12-12FF | 102HY-12-12 | 12U-212 |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
