CS01-4X8 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x 1/2-14 Thread NPTF Male Solid | Straight | Trivalent Zinc Plating | Replaces: 439V
Couplamatic Systems Inc.
Vari-Crimp Couplings - NPTF - Male Solid
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $8.83 |
| 40–79 | $7.98 |
| 80+ | $7.04 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|

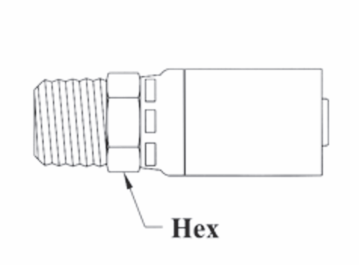

| Part Number | Hose ID | Pipe Size | Thread Size | Hex Size | Previous Part Number | Cross Reference Part Numbers | ||
|---|---|---|---|---|---|---|---|---|
| Dayco HY | Parker HY | Weatherhead U | ||||||
| CS01-4X2 | 1/4" | 1/8" | 1/8-27 | 9/16" | 400V | HY04-02MP | 101HY-2-4 | 04U-102 |
| CS01-4X4 | 1/4" | 1/4" | 1/4-18 | 9/16" | 403V | HY04-04MP | 101HY-4-4 | 04U-104 |
| CS01-4X6 | 1/4" | 3/8" | 3/8-18 | 11/16" | 415V | HY04-06MP | 101HY-6-4 | 04U-106 |
| CS01-4X8 | 1/4" | 1/2" | 1/2-14 | 7/8" | 439V | HY04-08MP | 101HY-8-4 | 04U-108 |
| CS01-6X4 | 3/8" | 1/4" | 1/4-18 | 3/4" | 600V | HY06-04MP | 101HY-4-6 | 06U-104 |
| CS01-6X6 | 3/8" | 3/8" | 3/8-18 | 3/4" | 603V | HY06-06MP | 101HY-6-6 | 06U-106 |
| CS01-6X8 | 3/8" | 1/2" | 1/2-14 | 7/8" | 615V | HY06-08MP | 101HY-8-6 | 06U-108 |
| CS01-8X4 | 1/2" | 1/4" | 1/4-18 | 7/8" | 866V | HY08-04MP | 101HY-4-8 | 08U-104 |
| CS01-8X6 | 1/2" | 3/8" | 3/8-18 | 7/8" | 800V | HY08-06MP | 101HY-6-8 | 08U-106 |
| CS01-8X8 | 1/2" | 1/2" | 1/2-14 | 7/8" | 803V | HY08-08MP | 101HY-8-8 | 08U-108 |
| CS01-8X12 | 1/2" | 3/4" | 3/4-14 | 1-1/8" | 854V | HY08-12MP | 101HY-12-8 | 08U-112 |
| CS01-10X8 | 5/8" | 1/2" | 1/2-14 | 15/16" | 1000V | HY10-08MP | 101HY-8-10 | 10U-108 |
| CS01-10X12 | 5/8" | 3/4" | 3/4-14 | 1-1/8" | 1003V | HY10-12MP | 101HY-12-10 | 10U-112 |
| CS01-12X8 | 3/4" | 1/2" | 1/2-14 | 1-1/8" | 1200V | HY12-08MP | 101HY-8-12 | 12U-108 |
| CS01-12X12 | 3/4" | 3/4" | 3/4-14 | 1-1/8" | 1203V | HY12-12MP | 101HY-12-12 | 12U-112 |
| CS01-12X16 | 3/4" | 1" | 1-11-1/2 | 1-3/8" | 1254V | HY12-16MP | 101HY-16-12 | 12U-116 |
| CS01-16X12 | 1" | 3/4" | 3/4-14 | 1-3/8" | 1603V | HY16-12MP | 101HY-12-16 | 16U-112 |
| CS01-16X16 | 1" | 1" | 1-11-1/2 | 1-3/8" | 1600V | HY16-16MP | 101HY-16-16 | 16U-116 |
| CS01-16X16BR* | 1" | 1" | 1-11-1/2 | 1-3/8" | NA | - | - | - |
| CS01-20X20 | 1-1/4" | 1-1/4" | 1-1/4-11-1/2 | 1-11/16" | 2000V | HY20-20MP | 101HY-20-20 | 20U-120 |
*BR - Brass Stem
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
