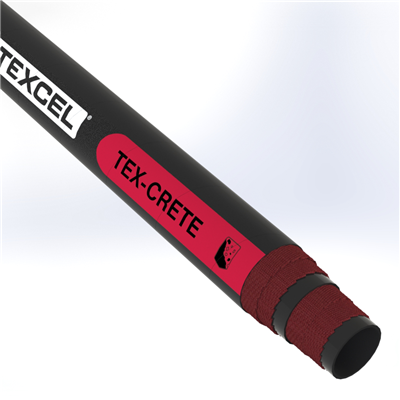

CRETE-4.0-100B by Texcel | TEX-CRETE Series | Textile Concrete Hose | 4" Hose ID | 1230 PSI | Black
Texcel
TEX-CRETE Series | Textile Concrete Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $84.66 |
| 20–59 | $76.55 |
| 60+ | $67.55 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | Designed to provide the ultimate combination of handling ease, abuse resistance and long service life required for plaster, grout and concrete placement applications. Ideal for concrete pumping applications. | Tube: | Black, wear-resistant, GUM/SBR blend |
| Cover: | Black, SBR, cut and gouge-resistant | Reinforcement: | Multiple plies of high tensile tire cord |
| Safety Factor: | 2:1 (per ASME standards) | Temperature: | -40°F to +200°F |
| Branding: | TEXCEL® TEX-CRETE - FABRIC CONCRETE PLACEMENT HOSE 1230 PSI (85 BAR) W.P. XXX LBS/FT (F.W.C) | Features: | Meets ASME B3.27-2009 specifications |
| Part Number | Hose ID | Hose OD | Working Pressure (psi/bar) | Burst Pressure (psi/bar) | Bend Radius | Lbs./Ft. |
|---|---|---|---|---|---|---|
| CRETE-1.0-100B | 1" | 1-43/64" | 1230/85 | 2460/170 | 6" | 0.69 lbs |
| CRETE-1.25-100B | 1-1/4" | 2" | 1230/85 | 2460/170 | 8" | 0.86 lbs |
| CRETE-1.5-100B | 1-1/2" | 2-12/64" | 1230/85 | 2460/170 | 10" | 0.92 lbs |
| CRETE-2.0-100B | 2" | 2-49/64" | 1230/85 | 2460/170 | 12" | 1.45 lbs |
| CRETE-2.5-100B | 2-1/2" | 3-22/64" | 1230/85 | 2460/170 | 14" | 1.71 lbs |
| CRETE-3.0-100B | 3" | 4" | 1230/85 | 2460/170 | 15" | 2.40 lbs |
| CRETE-3.5-100B | 3-1/2" | 4-31/64" | 1230/85 | 2460/170 | 16" | 3.07 lbs |
| CRETE-4.0-100B | 4" | 5-10/64" | 1230/85 | 2460/170 | 18" | 4.06 lbs |
| CRETE-4.5-100B | 4-1/2" | 5-38/64" | 1230/85 | 2460/170 | 21" | 4.22 lbs |
| CRETE-5.0-100B | 5" | 6-19/64" | 1230/85 | 2460/170 | 24" | 5.80 lbs |
| CRETE-6.0-100B | 6" | 7-21/64" | 1230/85 | 2460/170 | 30" | 6.80 lbs |
