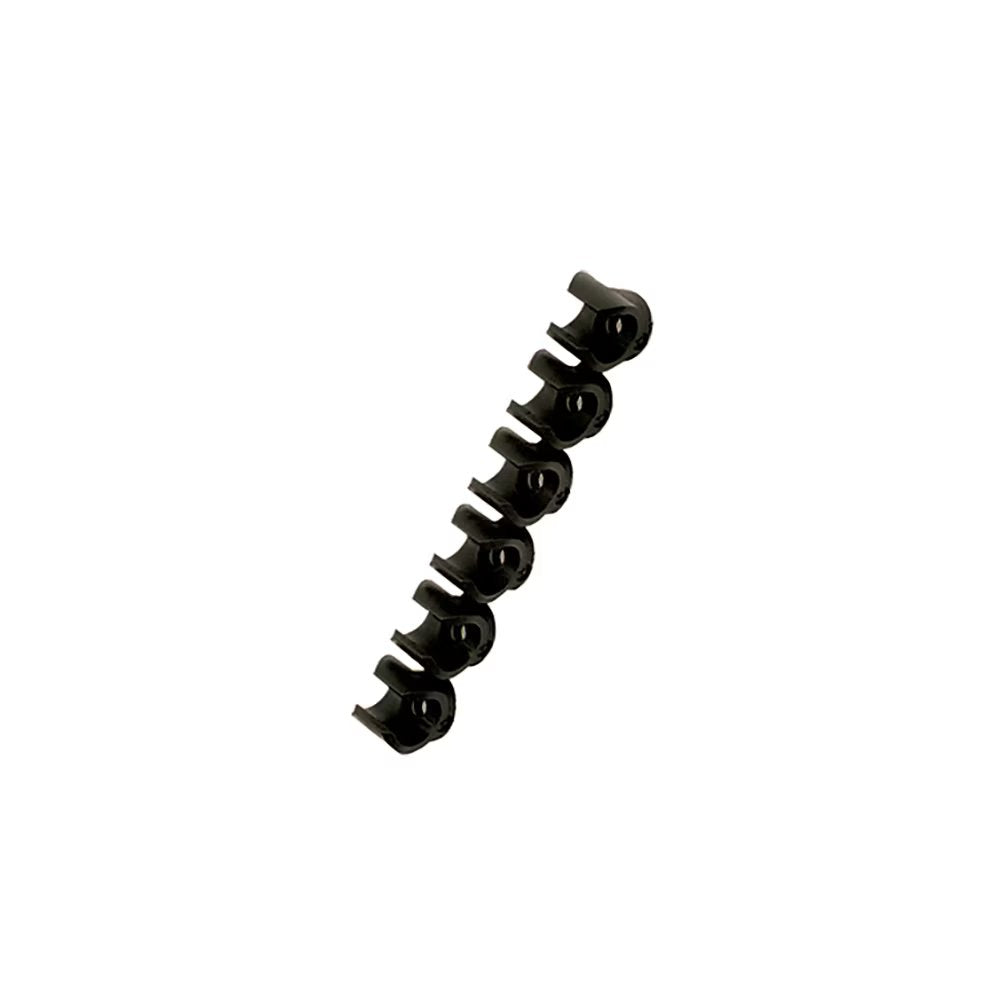

CLIP 12 00 by Parker | Legris Prestolok PLP Composite Push-to-Connect Fittings | Accessories | 1/2", 10mm Tube | 16.5mm Height (H) | LF3000 To Be Clipped | No. Per Strip 5 | Pack of 10

CLIP 12 00 by Parker | Legris Prestolok PLP Composite Push-to-Connect Fittings | Accessories | 1/2", 10mm Tube | 16.5mm Height (H) | LF3000 To Be Clipped | No. Per Strip 5 | Pack of 10

Sale price$60.75

by Parker Hannifin
Push-to-Connect Fittings:Clip Strips for Tubing and Fittings

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
10–39 $57.11
40–79 $51.64
80+ $45.56
Discounts applied in cart/checkout.

Product Data:

Shape:

No Orientation

Material(s):
  • Glass-Reinforced Nylon
Special Properties:
  • Corrosion Resistance
  • Chemical Resistance
  • Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number D Tube LF3000 To Be Clipped H K N Number Per Strip
CLIP 04 00 5/32, 4MM - 9 mm 13.5 mm 10.5 mm 8
CLIP 06 00 1/4, 3/16, 6MM - 10.5 mm 13.0 mm 10.5 mm 8
CLIP 08 00 5/16, 8MM 5/32, 4MM 12.5 mm 10.5 mm 12 mm 7
CLIP 10 00 3/8, 10MM 1/4, 6MM 14 mm 12 mm 15 mm 6
CLIP 12 00 1/2, 12MM - 16.5 mm 14 mm 16.5 mm 5
CLIP 14 00 14MM 5/16, 8MM 18 mm 16 mm 20.5 mm 4

Clip strips come complete with screws of .512 inches in length.

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
