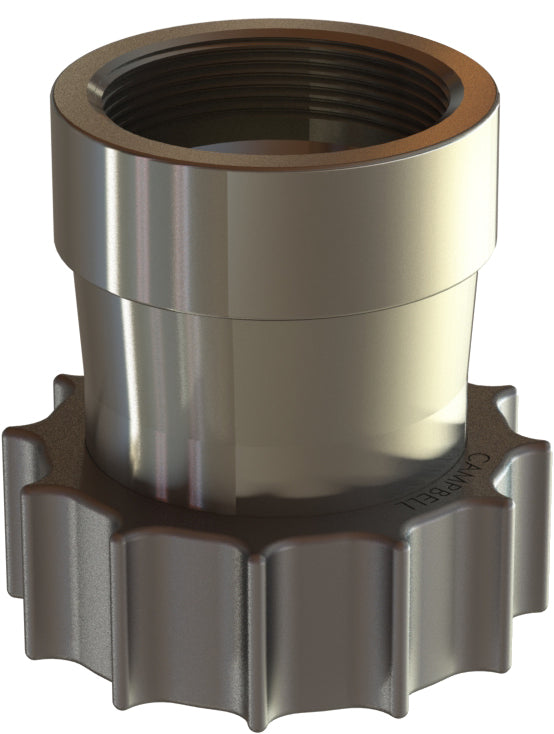

CJFS-8 by Campbell Fittings | CHEMJOINT™ Coupling | Union without Viton® Spud | 2" Hose Size | Straight | 316 Stainless Steel

CJFS-8 by Campbell Fittings | CHEMJOINT™ Coupling | Union without Viton® Spud | 2" Hose Size | Straight | 316 Stainless Steel

Sale price$471.54

by Campbell
CHEMJOINT™ Couplings:CHEMJOINT™ UNION (without Viton® Spud)
Buy More, Save More!
Quantity Price Each
5–14 $443.25
15–29 $400.81
30+ $377.23
Discounts applied in cart/checkout.
Description: ChemJoint™ Couplings and Male Stems create an extremely versatile Chemical Hose assembly system. The system solves problematic Cam and Groove issues such as pressure, temperature, side load, viscosity, line dedication and ergonomics.
Features and Benefits:
  • Graduated serration pattern - sharper near the interlock, rounder near the end. Grips and seals plastic lined Chemical Hose without cutting through the tube.
  • 360° interlock groove on fitting locks ferrule into place for the ultimate in holding power.
  • Crimped assemblies are low profile and eliminate sharp edges from bands.
  • Viton® Seal allows coupling to meet pressure ratings with hand-tightened nut.
Recommended Hose Attachment:
  • Interlocking ferrules
  • Preformed bands
Part Number Hose Size
CJFS-3 3/4"
CJFS-4 1"
CJFS-6 1-1/2"
CJFS-8 2"
CJFS-12 3"

Product Data:

Brand:
  • CHEMJOINT™
Shape:

Straight

Material(s):
  • 316 Stainless Steel

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
