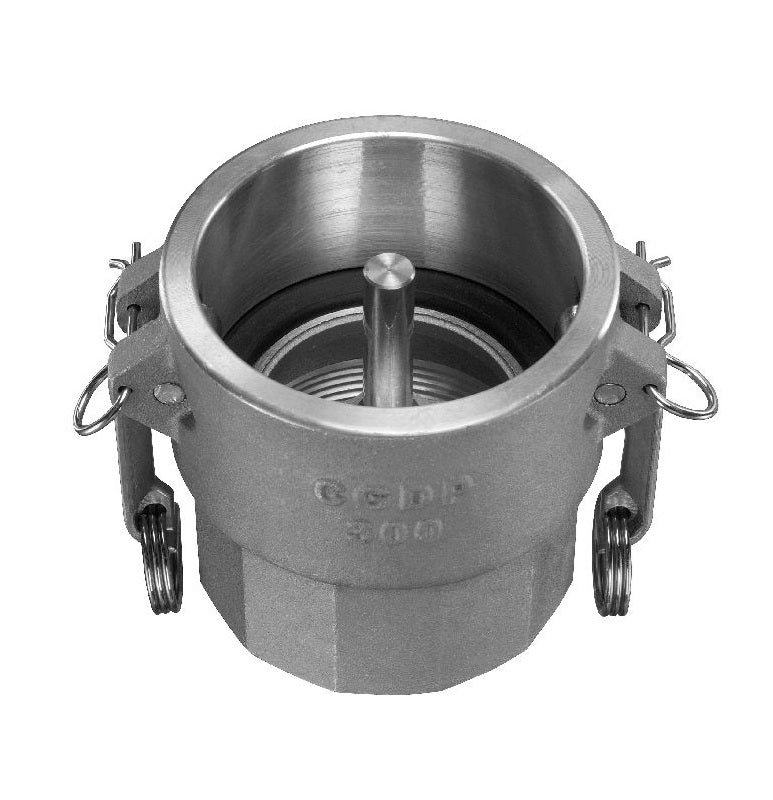

CGDP-A4040 by Kuriyama | CGDP Series | Part D | Vapor Recovery Cam & Groove Adapter | with Probe | 4" Adapter x 4" Female NPT | Aluminum
Kuriyama of America Inc.
Vapor Recovery Cam & Groove (Camlock) Adapter with Probe | CGDP Series | Part D | Adapter x Female NPT | Aluminum
Kuriyama Camlock Couplings are intended for use in many industrial applications.
High quality design made to withstand rigorous applications found in industrial markets.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $82.36 |
| 20–59 | $74.48 |
| 60+ | $65.72 |
Discounts applied in cart/checkout.
What are the Applications?
- Kuriyama Camlock Couplings are intended for use in many industrial applications.
- Ideal for agriculture, industrial, petroleum, construction, and irrigation.
What are the Features?
- High quality design made for use in petroleum markets with bottom loading applications.
- Each coupling comes with a probe for connecting with male vapor coupling.
- Aluminum alloy specially designed for high tensile strength and impact resistance.
- Supplied with forged brass handles, which results in less wear on connecting parts.
What are the Materials?
- ASTM aluminum alloy.
- Zinc-plated carbon steel handle pins, pull rings and safety clips.
- Supplied with brass probe.
- Buna-N gasket included.
| Part Number | Female Coupler Size (in) |
Female NPT Size (in) |
PSI Rating at 70°F |
ASTM Specification | Weight Each (lbs) |
|---|---|---|---|---|---|
| CGDP-A4030 | 4" | 3" | 150 PSI | B26 Grade 713 | 3.08 lbs |
| CGDP-A4040 | 4" | 4" | 150 PSI | B26 Grade 713 | 3.80 lbs |
Product Data:
Series:
MAWP:
150
Shape:
Straight
Cam & Groove Type:
Type D
Ends Configuration:
Material(s):
Seal Material(s):
