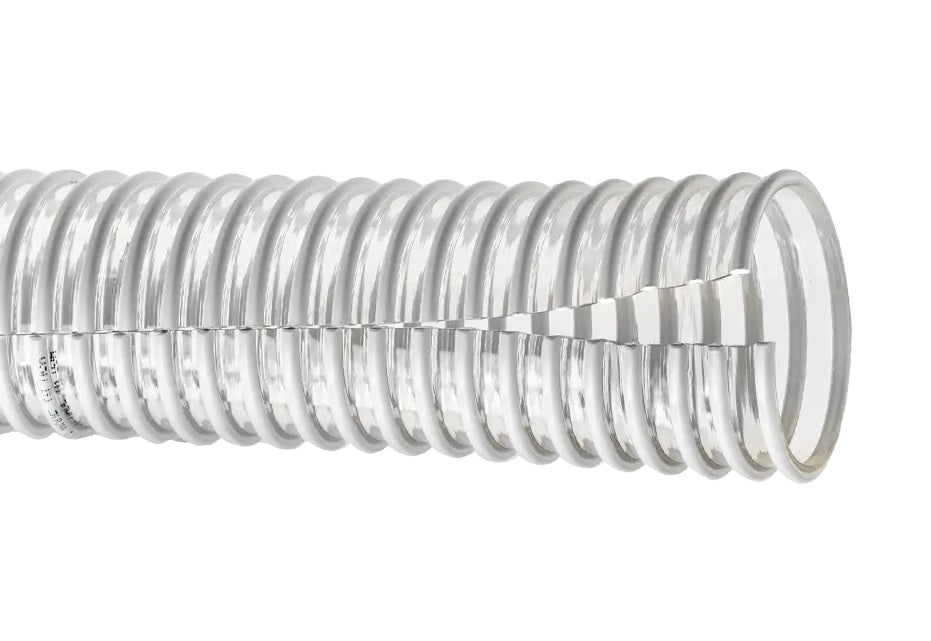

CG-SL100X100 Tigerflex® "Cover Guard Slit" by Kuriyama | CG-SL™ Series | Pre-Slit Protection Cover Hose | PVC | 1" ID | 1.28" OD | 100ft Length
CG-SL100X100 Tigerflex® "Cover Guard Slit" by Kuriyama | CG-SL™ Series | Pre-Slit Protection Cover Hose | PVC | 1" ID | 1.28" OD | 100ft Length

CG-SL100X100 Tigerflex® "Cover Guard Slit" by Kuriyama | CG-SL™ Series | Pre-Slit Protection Cover Hose | PVC | 1" ID | 1.28" OD | 100ft Length

Sale price$203.70
p>Kuriyama of America Inc.
Tigerflex® | "Cover Guard Slit" CG-SL™ Series | Pre-Slit Protection Cover Hose | PVC

Designed for Cable and hose bundle protection (MSHA), as well as mine supply line cover protection.

Made in the USA.


Package Quantity: 100 Foot

Buy More, Save More!
Quantity Price Each
5–19 $191.48
20–59 $173.15
60+ $152.78
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Cover Guard Slit
  • Tigerflex
Series:
  • CG-SL Series
Color(s):
  • White/Off-White & Clear/Semi-Clear
Applications: Cable and hose bundle protection (MSHA).
Mine supply line cover protection.
Tube: PVC. Reinforcement: Rigid PVC helix (pre-slit).
Cover: - Service Temperature Range: -4°F (-20°C) to +150°F (+65°C)
(Actual service temperature range is application dependent)
Specifications: MSHA (08)
Phthalate Free (10)
RoHS (11)
For more information please see the Kuriyama Tigerflex Hose Specifications Guide PDF.
What are the Features?
  • MSHA (08) Approved - Meets U.S. Dept. of Labor Administration requirements for fl ame-resistance for use in mines for protection of hose bundles.
  • Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.

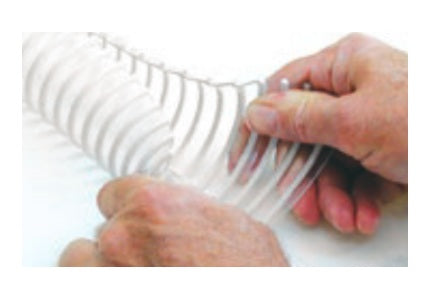

  • Pre-Slit - Allows for easy insertion of hose bundles.
  • Made in the USA.
  • Note: Service life may vary depending on operating conditions and type of material being conveyed.
Part Number
100ft		 ID OD Weight
in mm in mm lbs/ft
CG-SL100X100 1" 25.4mm 1.28" 31.9mm 0.14 lbs
CG-SL125X100 1-1/4" 31.8mm 1.51" 38.4mm 0.18 lbs
CG-SL150X100 1-1/2" 38.1mm 1.76" 45.1mm 0.21 lbs
CG-SL200X100 2" 50.8mm 2.30" 58.4mm 0.28 lbs
CG-SL250X100 2-1/2" 63.5mm 2.81" 71.3mm 0.39 lbs
CG-SL300X100 3" 76.2mm 3.35" 85.0mm 0.45 lbs
CG-SL350X100 3-1/2" 88.9mm 3.83" 97.4mm 0.51 lbs
CG-SL400X100 4" 102.4mm 4.39" 111.4mm 0.64 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
