CAT90-20-20-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | CAT Flange | 90° Elbow | for 1-1/4" Hose ID

CAT90-20-20-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | CAT Flange | 90° Elbow | for 1-1/4" Hose ID

Sale price$87.51

by Kurt Hydraulics
CAT90-JJ - Cat Flange 90 deg. Bent Tube Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
5–19 $82.26
20–59 $74.38
60+ $65.63
Discounts applied in cart/checkout.

Product Data:

Series:
  • JJ Series
Shape:

90 Degree

Ends Configuration:
  • 1-1/4in Hose Barb
  • 1-1/4in Cat Flange

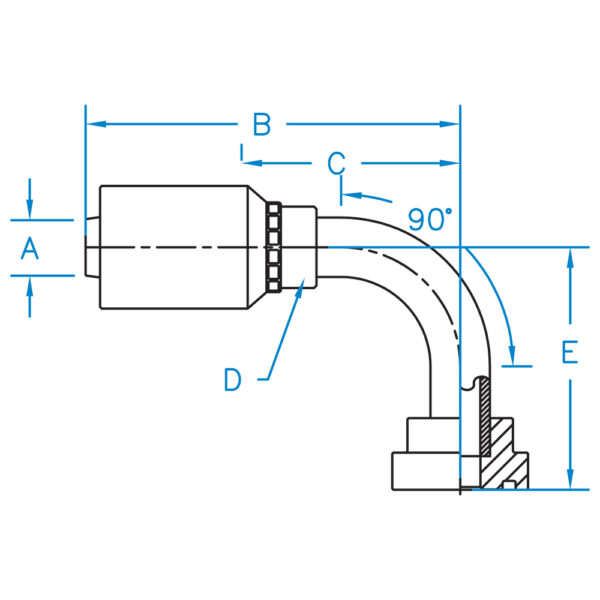

Part Number A B C D E Hose ID
(In)		 Thread
CAT90-20-20-JJ 1.250 6.390 3.790 1-3/4R 3.100 1-1/4" N/A
CAT90-20-24-JJ 1.250 6.39 3.79 1-3/4R 3.29 1-1/4" N/A
CAT90-24-24-JJ 1.500 6.12 3.41 2-1/8R 3.43 1-1/2" N/A
CAT90-32-32-JJ N/A N/A N/A N/A N/A N/A N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
