CAT90-16-16-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | CAT Flange | 90° Elbow | for 1" Hose ID

CAT90-16-16-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | CAT Flange | 90° Elbow | for 1" Hose ID

Sale price$70.80

by Kurt Hydraulics
CAT90-WHP - CAT Flange 90 deg. Bent Tube Rigid - Ultra High Pressure Non Skive

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
5–19 $66.55
20–59 $60.18
60+ $53.10
Discounts applied in cart/checkout.

Product Data:

Series:
  • WHP Series
Shape:

90 Degree

Ends Configuration:
  • 1in Hose Barb
  • 1in CAT Flange

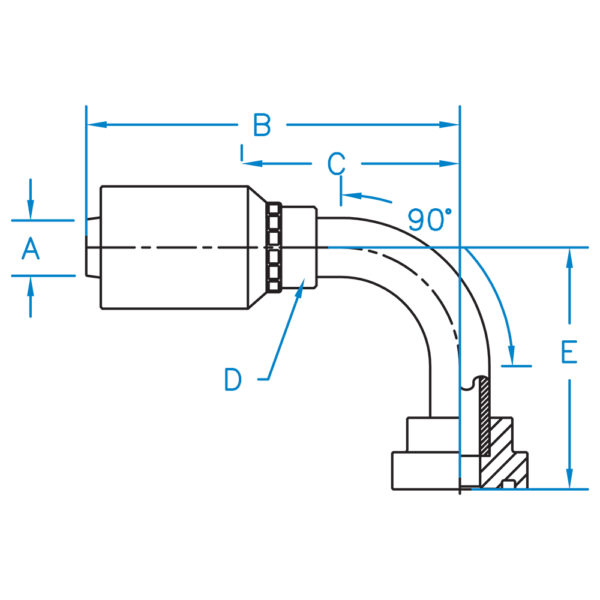

Part Number A B C D E Hose ID
(In)		 Thread
CAT90-12-12-WHP 0.750 4.762 2.332 1-3/16R 2.650 3/4" N/A
CAT90-16-16-WHP 1.000 5.169 2.639 1-7/16R 2.900 1.000" N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
