CAT30-12-12-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | CAT Flange | 30° Elbow | for 3/4" Hose ID

CAT30-12-12-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | CAT Flange | 30° Elbow | for 3/4" Hose ID

Sale price$40.28

by Kurt Hydraulics
CAT-WHP - CAT Flange 22 deg., 30 deg., 45 deg. Bent Tube Rigid - Ultra High Pressure Non Skive

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $37.86
40–79 $34.24
80+ $30.21
Discounts applied in cart/checkout.

Product Data:

Series:
  • WHP Series
Shape:

30 Degree

Ends Configuration:
  • 3/4in Hose Barb
  • 3/4in CAT Flange

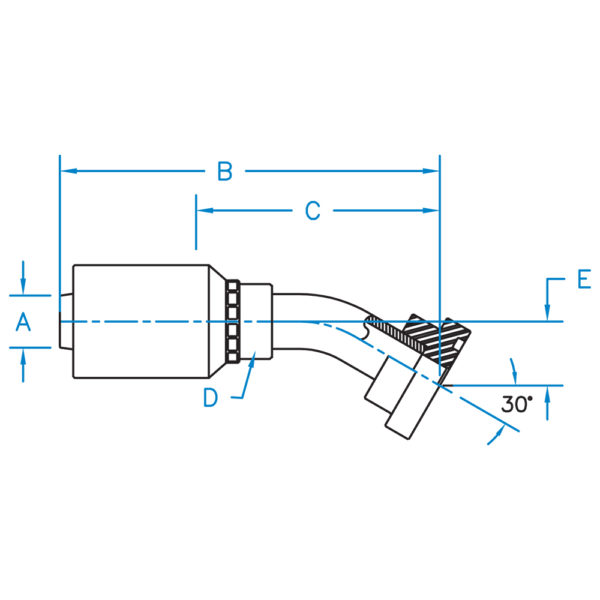

Part Number Degree A B C D E Hose ID
(In)		 Thread
CAT22-12-12-WHP 22 deg. 0.750 5.571 3.141 1-3/16R .622 3/4" N/A
CAT30-12-12-WHP 30 deg. 0.750 5.847 3.417 1-3/16R .842 3/4" N/A
CAT45-12-12-WHP 45 deg. 0.750 4.729 2.94 1-3/16R 1.36 3/4" N/A
CAT45-16-16-WHP 45 deg. 1.000 5.719 3.189 1-7/16R 1.430 1.000" N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
