CAT-16-16-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | CAT Flange | for 1" Hose ID

CAT-16-16-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | CAT Flange | for 1" Hose ID

Sale price$75.88

by Kurt Hydraulics
CAT-WHP - CAT Flange Straight Rigid - Ultra High Pressure Non Skive

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
5–19 $71.33
20–59 $64.50
60+ $56.91
Discounts applied in cart/checkout.

Product Data:

Series:
  • WHP Series
Shape:

Straight

Ends Configuration:
  • 1in Hose Barb
  • 1in CAT Flange

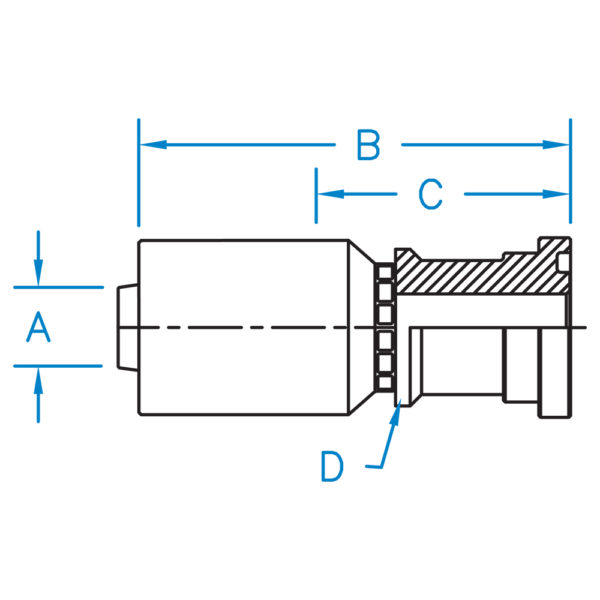

Part Number A B C D Hose ID
(In)		 Thread
CAT-12-12-WHP 0.750 5.890 3.460 1-5/8R 3/4" N/A
CAT-16-16-WHP 1.000 5.180 2.650 1-7/8R 1.000" N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
