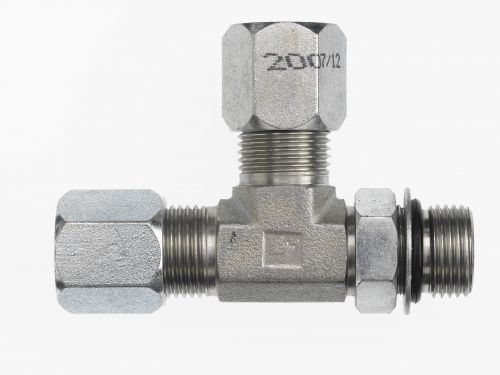

C6804-04-04-04-NWO-FG by Brennan Inc. | -04 Bite Type x -04 Male Adjustable O-Ring Boss x -04 Bite Type | Tee | Forged Steel
Brennan Inc.
Flareless Bite Type: C6804-NWO - Bite Type x Male Adjustable O-Ring Boss x Bite Type Tee
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $12.85 |
| 40–79 | $11.62 |
| 80+ | $10.25 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
 |
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Tube O.D. | B1Thread | B2Thread | B3Thread | B1Drill | B2Drill | B3Drill | KDepth | MLength | M7Length | CHex | YFlats |
| C6804-04-04-04-NWO-FG | Forged Steel | 1/4" | 7/16-20" | 7/16-20" | 7/16-20" | 0.203" | 0.203" | 0.203" | 0.234" | 0.890" | 1.030" | 0.562" | 0.438" |
| C6804-06-06-06-NWO-FG | Forged Steel | 3/8" | 9/16-18" | 9/16-18" | 9/16-18" | 0.281" | 0.281" | 0.281" | 0.250" | 1.050" | 1.250" | 0.688" | 0.562" |
| C6804-08-08-08-NWO-FG | Forged Steel | 1/2" | 3/4-16" | 3/4-16" | 3/4-16" | 0.422" | 0.422" | 0.422" | 0.305" | 1.250" | 1.450" | 0.875" | 0.750" |
| C6804-04-04-04-NWO-SS | Stainless Steel | 1/4" | 7/16-20" | 7/16-20" | 7/16-20" | 0.203" | 0.203" | 0.203" | 0.234" | 0.890" | 1.030" | 0.562" | 0.438" |
| C6804-06-06-06-NWO-SS | Stainless Steel | 3/8" | 9/16-18" | 9/16-18" | 9/16-18" | 0.281" | 0.281" | 0.281" | 0.250" | 1.050" | 1.250" | 0.688" | 0.562" |
| C6804-08-08-08-NWO-SS | Stainless Steel | 1/2" | 3/4-16" | 3/4-16" | 3/4-16" | 0.422" | 0.422" | 0.422" | 0.305" | 1.250" | 1.450" | 0.875" | 0.750" |
| C6804-16-16-16-NWO-SS | Stainless Steel | 1" | 1-5/16-12" | 1-5/16-12" | 1-5/16-12" | 0.875" | 0.875" | 0.875" | 0.415" | 1.730" | 2.050" | 1.500" | 1.312" |
