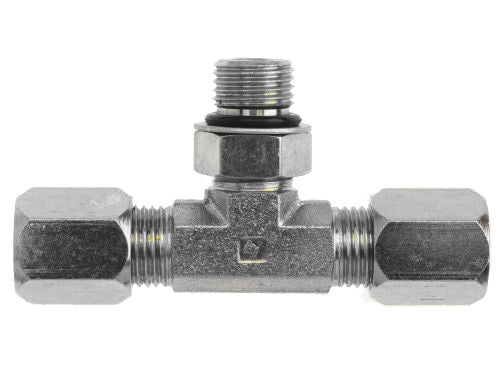

C6803-04-04-04-NWO-FG by Brennan Inc. | -04 Bite Type x -04 Bite Type x -04 Male O-Ring Boss | Tee | Forged Steel
Brennan Inc.
Flareless Bite Type: C6803-NWO Bite Type x Bite Type x Male O-Ring Boss Tee
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $20.76 |
| 40–79 | $18.77 |
| 80+ | $16.56 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
 |
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Tube O.D. | B1Thread | B2Thread | B3Thread | B1Drill | B2Drill | B3Drill | KDepth | MLength | M7Length | CHex | YFlats |
| C6803-04-04-04-NWO-FG | Forged Steel | 1/4" | 7/16-20" | 7/16-20" | 7/16-20" | 0.203" | 0.203" | 0.203" | 0.234" | 0.890" | 1.030" | 0.562" | 0.438" |
| C6803-06-06-06-NWO-FG | Forged Steel | 3/8" | 9/16-18" | 9/16-18" | 9/16-18" | 0.281" | 0.281" | 0.281" | 0.250" | 1.050" | 1.250" | 0.688" | 0.562" |
| C6803-08-08-08-NWO-FG | Forged Steel | 1/2" | 3/4-16" | 3/4-16" | 3/4-16" | 0.422" | 0.422" | 0.422" | 0.305" | 1.250" | 1.450" | 0.875" | 0.750" |
| C6803-04-04-04-NWO-SS | Stainless Steel | 1/4" | 7/16-20" | 7/16-20" | 7/16-20" | 0.203" | 0.203" | 0.203" | 0.234" | 0.890" | 1.030" | 0.562" | 0.438" |
| C6803-06-06-06-NWO-SS | Stainless Steel | 3/8" | 9/16-18" | 9/16-18" | 9/16-18" | 0.281" | 0.281" | 0.281" | 0.250" | 1.050" | 1.250" | 0.688" | 0.562" |
| C6803-08-08-08-NWO-SS | Stainless Steel | 1/2" | 3/4-16" | 3/4-16" | 3/4-16" | 0.422" | 0.422" | 0.422" | 0.305" | 1.250" | 1.450" | 0.875" | 0.750" |
| C6803-12-12-12-NWO-SS | Stainless Steel | 3/4" | 1-1/16-12" | 1-1/16-12" | 1-1/16-12" | 0.656" | 0.656" | 0.656" | 0.350" | 1.580" | 1.940" | 1.250" | 1.062" |
