C6290-24-24-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 62 Flange | 90° Elbow | for 1-1/2" Hose ID

C6290-24-24-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 62 Flange | 90° Elbow | for 1-1/2" Hose ID

Sale price$123.17

by Kurt Hydraulics
C6290-JJ - Code 62 Flange 90 deg. Bent Tube Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
5–19 $115.78
20–59 $104.69
60+ $92.38
Discounts applied in cart/checkout.

Product Data:

Series:
  • JJ Series
Shape:

90 Degree

Ends Configuration:
  • 1-1/2in Hose Barb
  • 1-1/2in Code 62 Flange

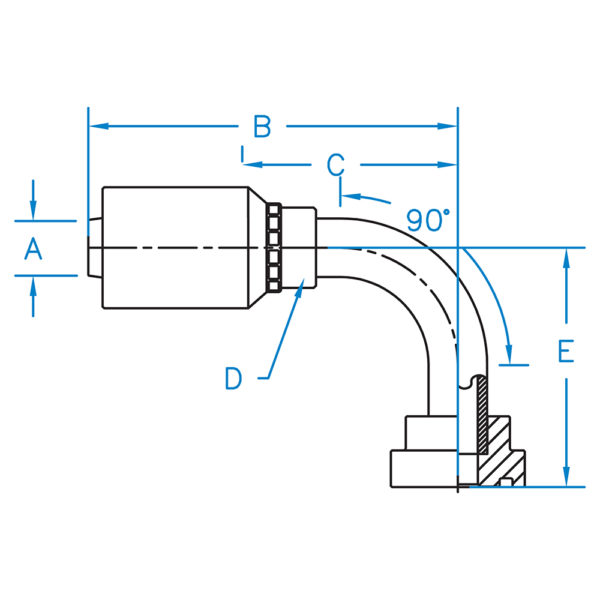

Part Number A B C D E Hose ID
(In)		 Thread
C6290-20-20-JJ 1.250 5.851 3.251 1-3/4R 2.990 1-1/4" N/A
C6290-20-24-JJ N/A N/A N/A N/A N/A N/A" N/A
C6290-24-24-JJ 1.500 6.490 3.780 2-1/8R 3.720 1-1/2" N/A
C6290-24-32-JJ 1.500 6.310 3.780 2-1/8R 3.530 1-1/2" N/A
C6290-32-32-JJ 2.000 8.867 5.097 2-3/4R 6.410 2.000" N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
