C6245-16-12-W by Kurt Hydraulics | Jump Size | Code 62 Flange | 45° Elbow | for 1" Hose ID

C6245-16-12-W by Kurt Hydraulics | Jump Size | Code 62 Flange | 45° Elbow | for 1" Hose ID

Sale price$61.53

by Kurt Hydraulics
C6245-W - Code 62 Flange 45 deg. Bent Tube Rigid

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $57.84
40–79 $52.30
80+ $46.15
Discounts applied in cart/checkout.

Product Data:

Series:
  • W Series
Shape:

45 Degree

Ends Configuration:
  • 1in Hose Barb
  • 3/4in Code 62 Flange

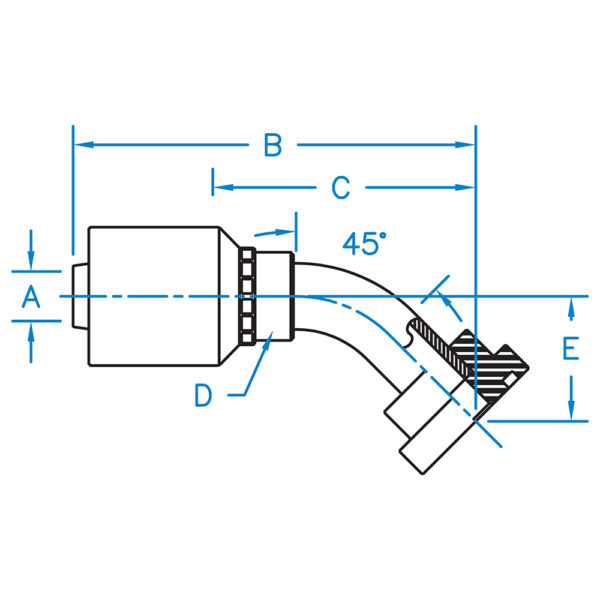

Part Number A B C D E Hose ID
(In)		 Thread
C6245-12-12-W 0.750 4.710 2.930 1.0R 0.950 3/4" N/A
C6245-12-16-W 0.750 4.800 3.010 1.0R 1.030 3/4" N/A
C6245-16-12-W N/A N/A N/A N/A N/A N/A N/A
C6245-16-16-W 1.000 4.870 3.262 1-5/16R 1.253 1.000" N/A
C6245-16-20-W 1.000 5.140 3.397 1-5/16R 1.387 1.000" N/A
C6245-20-20-W 1.250 6.290 3.950 1-5/8R 1.480 1-1/4" N/A
C6245-20-24-W 1.250 6.430 4.084 1-5/8 1.614 1-1/4" N/A
C6245-24-24-W 1.500 7.390 4.790 2.0R 1.750 1-1/2" N/A
C6245-32-32-W 2.000 9.16 5.86 2-1/2R 2.65 2.000" N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
